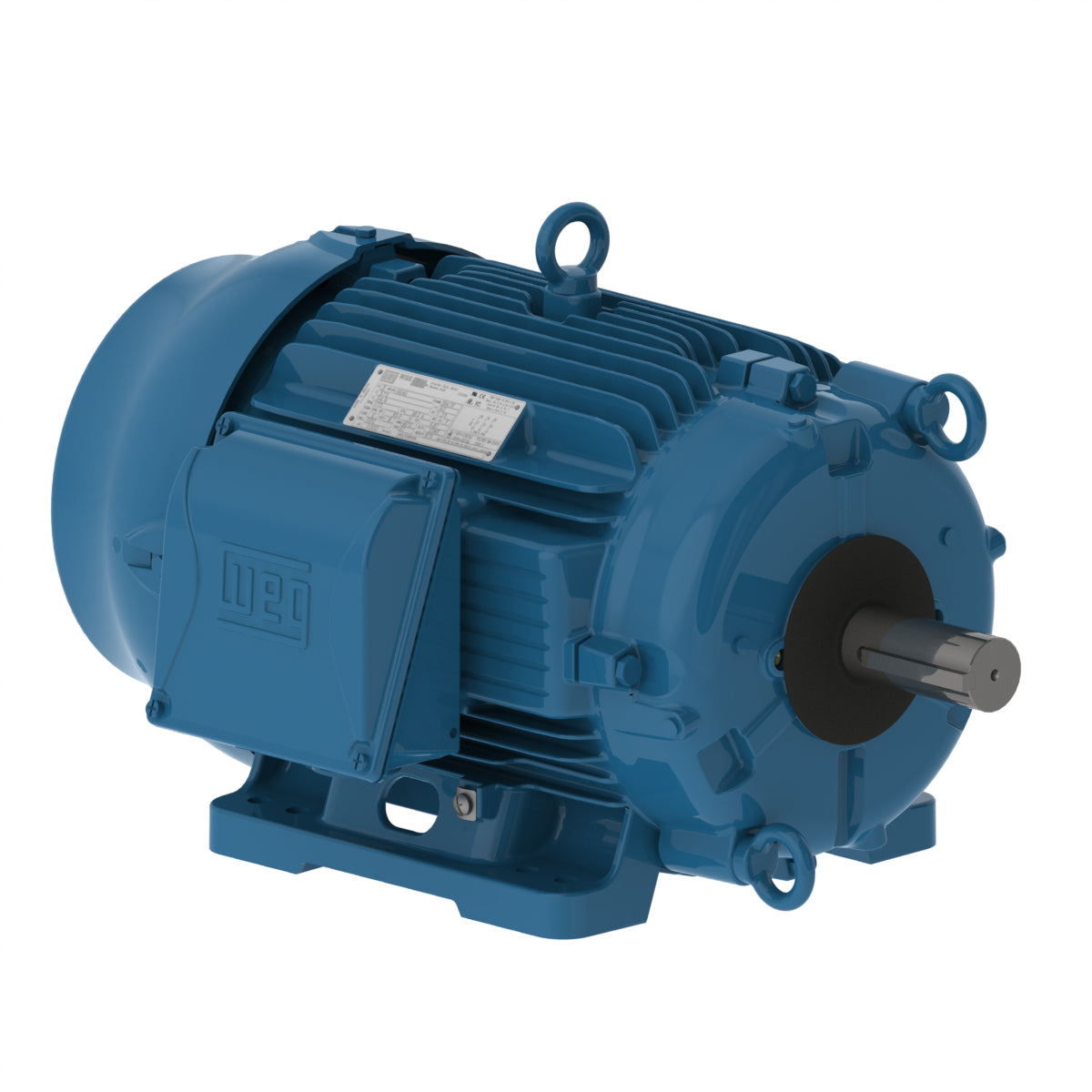

Weg Electric 00526EP3QCT254VF1-W2, 1 1/2 Hp, 600/1200 Rpm, 254/6T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

00526EP3QCT254VF1-W2, 1 1/2 Hp, 600/1200 Rpm, 254/6T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 12/6
Degree of Protection IP55
Synchronous speed 600/1200 rpm
Output rating 1.25/5.0 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6T
Output 1.25 HP (0.92 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 587 rpm
Slip 2.17 %
Rated voltage 460 V
Rated current 2.78 A
L. R. Amperes 9.17 A
LRC 3.3x(Code G)
No load current 2.30 A
Rated torque 11.2 ft.lb
Locked rotor torque 160 %
Breakdown torque 240 %
Locked rotor time 162s (cold) 90s (hot)
Moment of inertia (J) 3.92 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
