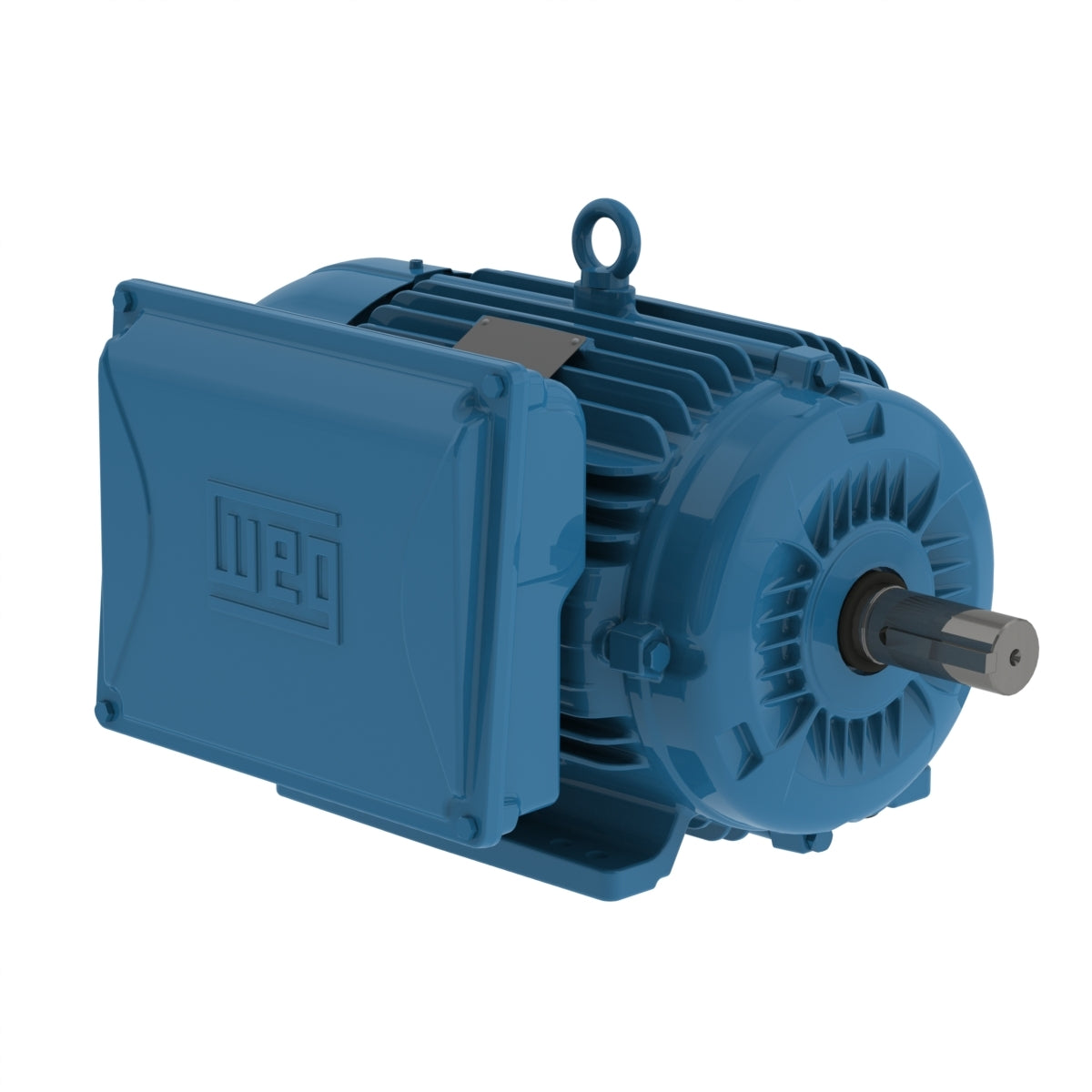

Weg Electric 00536ES1B184T-W22, 5 Hp, 3600 Rpm, 182/4T FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted.

00536ES1B184T-W22, 5 Hp, 3600 Rpm, 182/4T FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted.

Engineering Data

High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 115/208-230 V
Rated current 41.1/22.1-20.8 A
L. R. Amperes 358/192-181 A
LRC 8.7x(Code K)
No load current 15.0/0.000-7.50 A
Rated torque 7.47 ft.lb
Locked rotor torque 320 %
Breakdown torque 320 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
