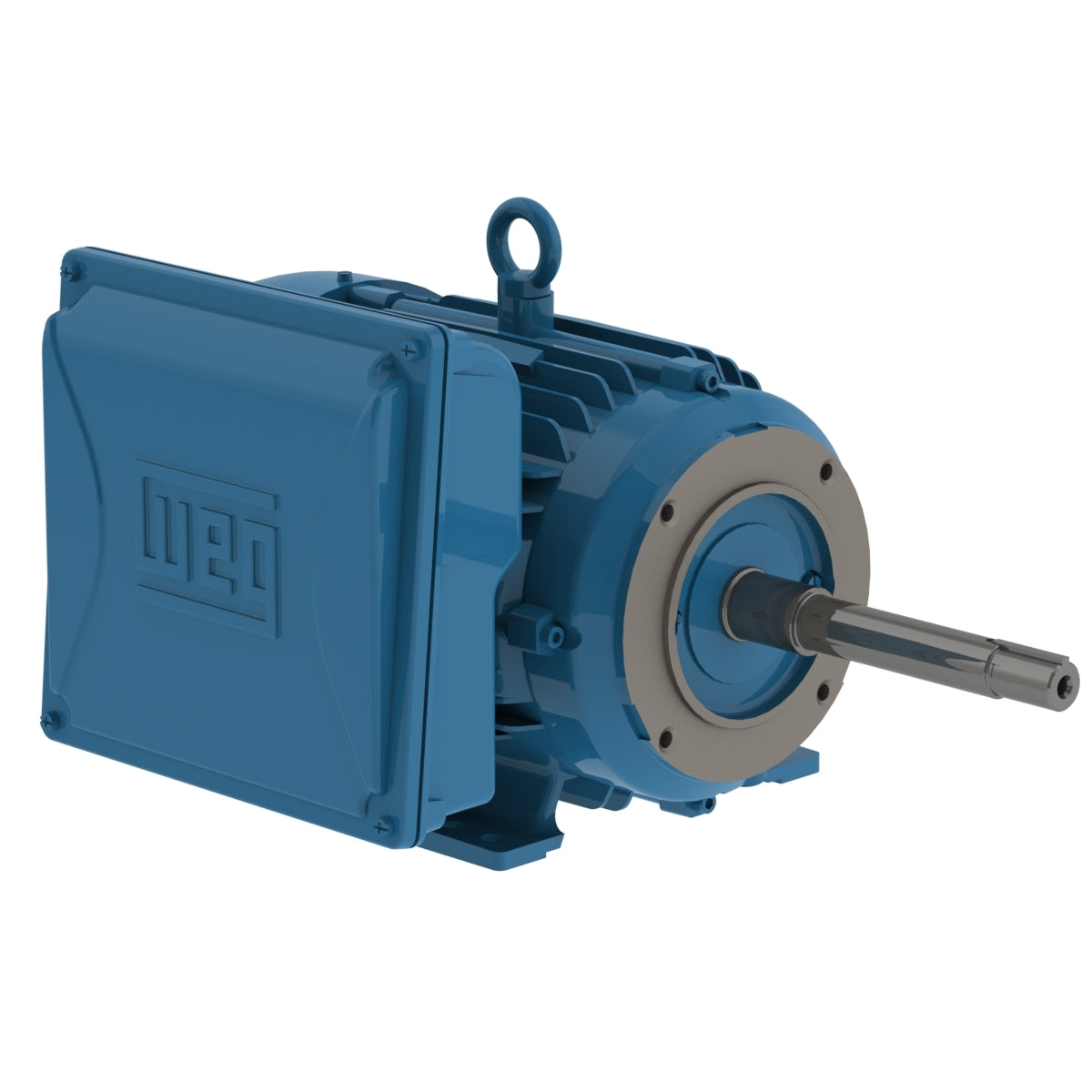

Weg Electric 00536ES1C184JM-W22, 5 Hp, 182/4JM Frame, 3600 RPM, 208-230 Vac, TEFC, 1 PH, Foot-mounted, W22 JM Pump.

00536ES1C184JM-W22, 5 Hp, 182/4JM Frame, 3600 RPM, 208-230 Vac, TEFC, 1 PH, Foot-mounted, W22 JM Pump.

Engineering Data

High starting torque.
For applications on commercial and industrial pumps (JM/JP - mechanical seal/gasket).
Suitable for domestic and rural power supply conditions.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4JM
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 208-230 V
Rated current 20.5-19.0 A
L. R. Amperes 146-135 A
LRC 7.1x(Code G)
No load current 3.36-3.90 A
Rated torque 7.47 ft.lb
Locked rotor torque 280 %
Breakdown torque 250 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.2164 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
