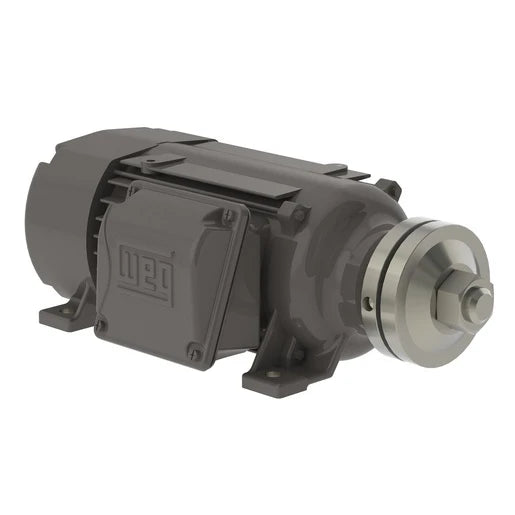

Weg Electric 00536ES3ESA80ML, 5 Hp, 3600 Rpm, 80M/MS Frame, 208-230/460 Vac, 3 PH, TEFC, Saw Arbor Motor Standard Efficiency, 13574401

Weg Electric 00536ES3ESA80ML, 5 Hp, 3600 Rpm, 80M/MS Frame, 208-230/460 Vac, 3 PH, TEFC, Saw Arbor Motor Standard Efficiency, 13574401

$1,032.40
$1,032.40
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00536ES3ESA80ML, 5 Hp, 3600 Rpm, 80M/MS Frame, 208-230/460 Vac, 3 PH, TEFC, Saw Arbor Motor Standard Efficiency, 13574401

SPECIFICATIONS

Frame 80M/MS
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3470 rpm
Slip 3.61 %
Rated voltage 208-230/460 V
Rated current 14.7-13.3/6.65 A
L. R. Amperes 118-106/53.2 A
LRC 8.0
No load current 4.95-5.74/2.87 A
Rated torque 7.57 ft.lb
Locked rotor torque 340 %
Breakdown torque 409 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.0973 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S6
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP54
Enclosure IC411 - TEFC
Mounting B3R(D)
Rotation¹ CW
Noise level² 62.0 dB(A)
Approx. weight³ 99.2 lb
