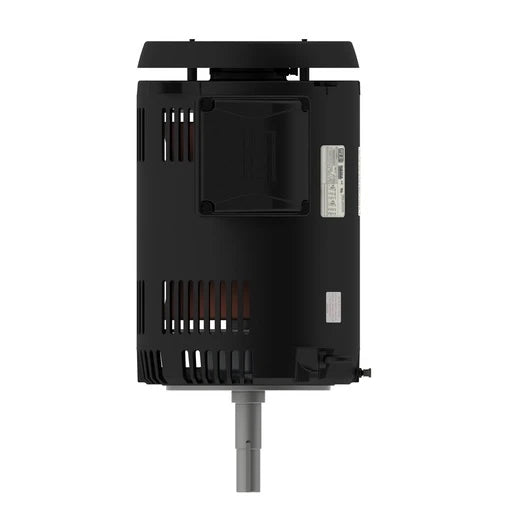

Weg Electric 00536ET3E184JP-S, 5 Hp, 3600 Rpm, 182/4JP FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 14328049

Weg Electric 00536ET3E184JP-S, 5 Hp, 3600 Rpm, 182/4JP FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 14328049

$973.66
$973.66
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00536ET3E184JP-S, 5 Hp, 3600 Rpm, 182/4JP FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 14328049

SPECIFICATIONS

Frame 182/4JP
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 230/460 V
Rated current 11.8/5.90 A
L. R. Amperes 92.0/46.0 A
LRC 7.8x(Code J)
No load current 4.40/2.20 A
Rated torque 7.50 ft.lb
Locked rotor torque 220 %
Breakdown torque 300 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.2079 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 78.9 lb
