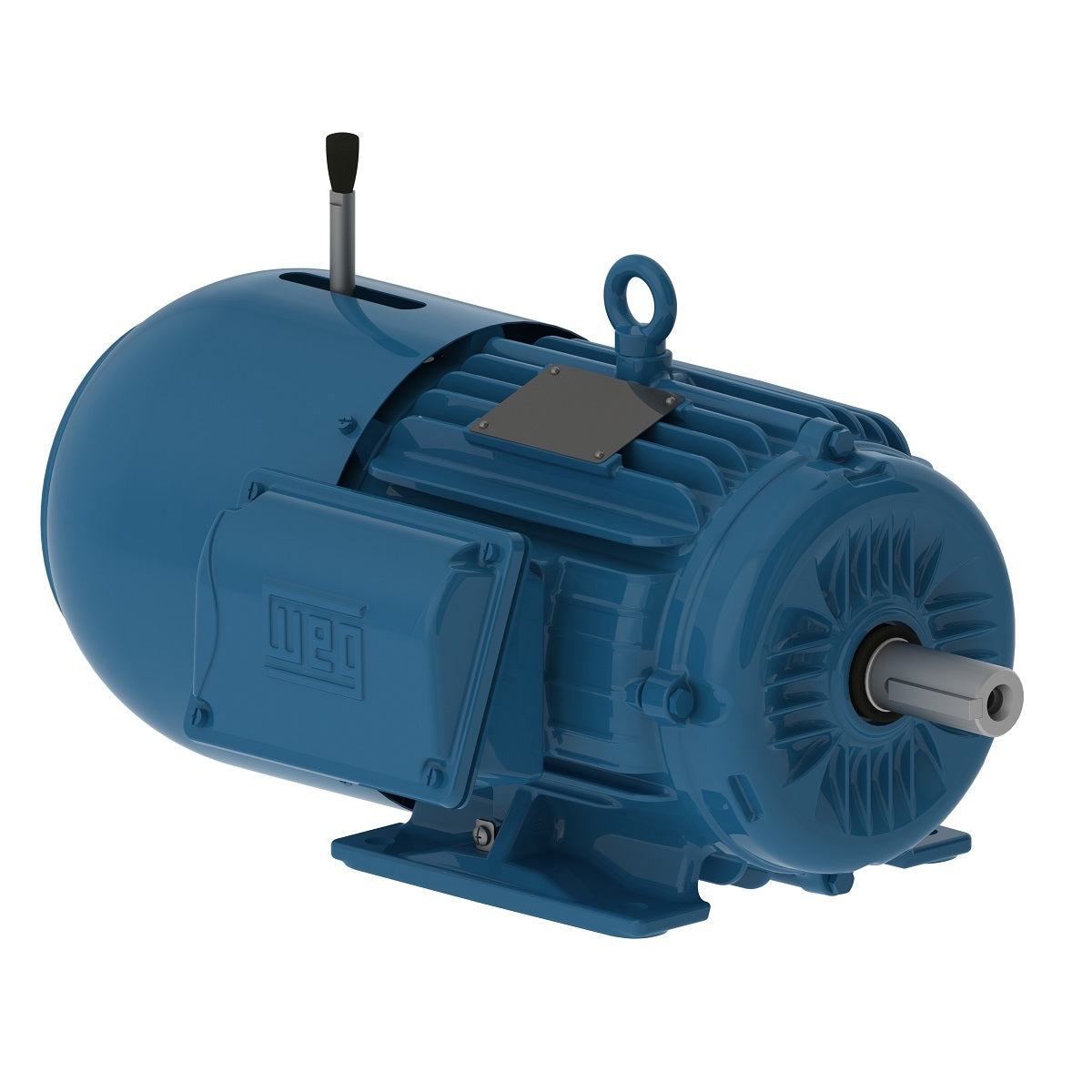

Weg Electric 00536ET3EBM184T-W22, 5 Hp, 3600 Rpm, 182/4T FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor.

00536ET3EBM184T-W22, 5 Hp, 3600 Rpm, 182/4T FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor.

Engineering Data

The W22 Brake Motor is the ideal motor for applications that require immediate, accurate and safe stops, and position control. They meet the needs of different applications, such as load elevators, hoists, shears, machining equipment, looms, packaging machines, conveyors, washing and bottling machines, bending machines, among others.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 230/460 V
Rated current 11.8/5.90 A
L. R. Amperes 89.7/44.8 A
LRC 7.6x(Code J)
No load current 4.00/2.00 A
Rated torque 7.53 ft.lb
Locked rotor torque 229 %
Breakdown torque 350 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
