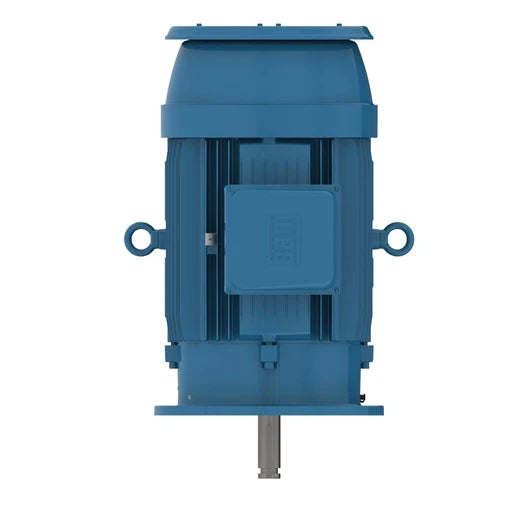

Weg Electric, 00536ET3Q184LP-W21, 5 Hp, 3600 Rpm, 184LP Frame, 460 Vac, TEFC, 3 PH, Footless, W21 In Line Extra Thrust NEMA Premium Efficiency, 18398413

Weg Electric, 00536ET3Q184LP-W21, 5 Hp, 3600 Rpm, 184LP Frame, 460 Vac, TEFC, 3 PH, Footless, W21 In Line Extra Thrust NEMA Premium Efficiency, 18398413

$3,365.98
$3,365.98
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, 00536ET3Q184LP-W21, 5 Hp, 3600 Rpm, 184LP Frame, 460 Vac, TEFC, 3 PH, Footless, W21 In Line Extra Thrust NEMA Premium Efficiency, 18398413

SPECIFICATIONS

Frame 184LP
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 460 V
Rated current 6.10 A
L. R. Amperes 45.7 A
LRC 7.5x(Code J)
No load current 2.10 A
Rated torque 7.52 ft.lb
Locked rotor torque 240 %
Breakdown torque 340 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.1542 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 152 lb
