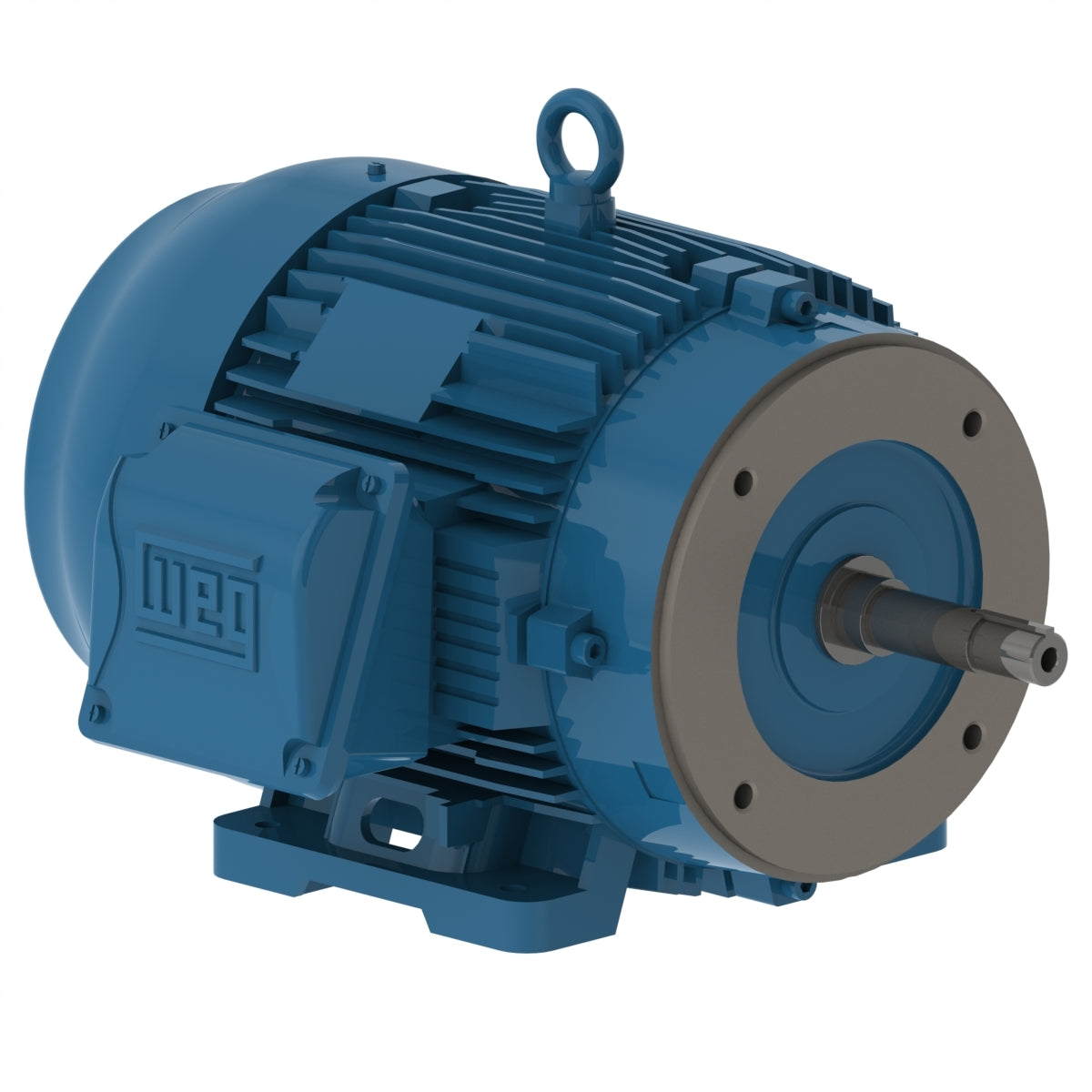

Weg Electric 00536ET3V184JM-W22, 5 Hp, 3600 Rpm, 182/4JM Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JM NEMA Premium Efficiency.

00536ET3V184JM-W22, 5 Hp, 3600 Rpm, 182/4JM Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JM NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4JM
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 200/400 V
Rated current 13.6/6.79 A
L. R. Amperes 103/51.6 A
LRC 7.6x(Code J)
No load current 4.60/2.30 A
Rated torque 7.53 ft.lb
Locked rotor torque 229 %
Breakdown torque 350 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
