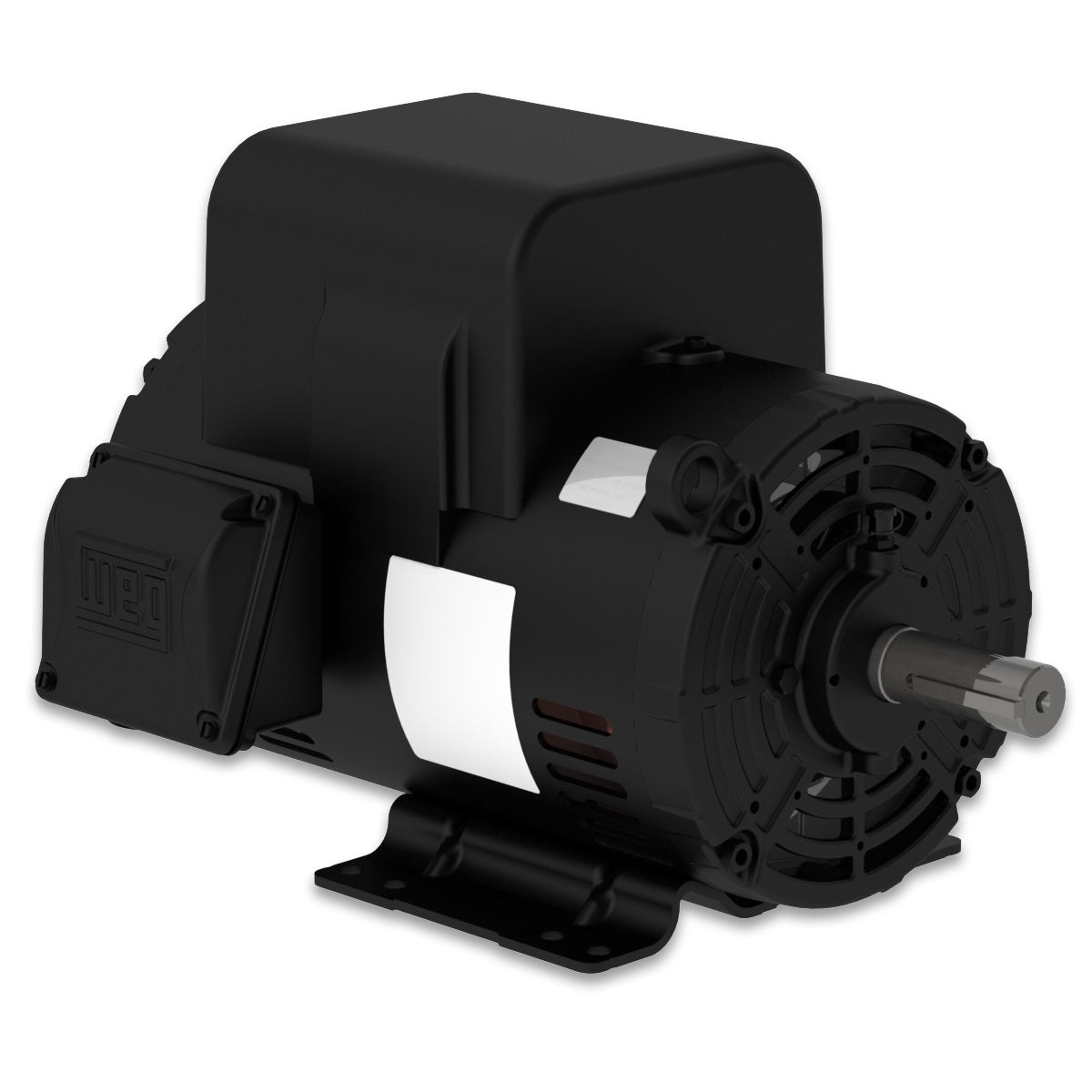

Weg Electric 00536OS1C184T-S, 5 Hp, 182/4T Frame, 3600 RPM, 208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

00536OS1C184T-S, 5 Hp, 182/4T Frame, 3600 RPM, 208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3495 rpm
Slip 2.92 %
Rated voltage 208-230 V
Rated current 21.5-19.3 A
L. R. Amperes 148-133 A
LRC 6.9x(Code G)
No load current 2.41-2.80 A
Rated torque 7.51 ft.lb
Locked rotor torque 290 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.1559 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
