Industrial Motors

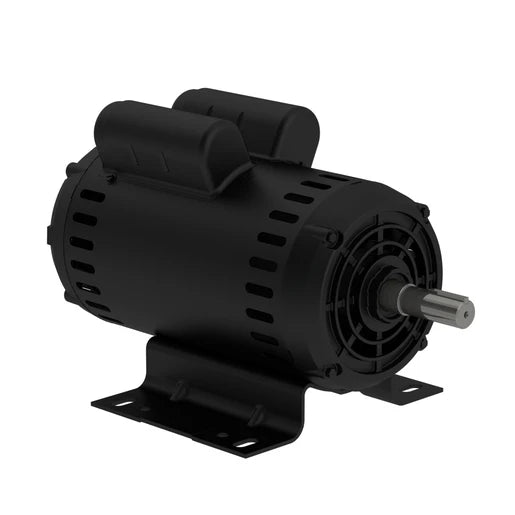

Weg Electric, 00536OS1CCD182/4Y, 5 Hp, 3600 Rpm, 208-230 Vac, 1 PH, ODP, Foot-Mounted, General Purpose Motor Compressor Duty

Weg Electric, 00536OS1CCD182/4Y, 5 Hp, 3600 Rpm, 208-230 Vac, 1 PH, ODP, Foot-Mounted, General Purpose Motor Compressor Duty

$468.14
$468.14
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, 00536OS1CCD182/4Y, 5 Hp, 3600 Rpm, 208-230 Vac, 1 PH, ODP, Foot-Mounted, General Purpose Motor Compressor Duty

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Degree of Protection IP21
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
View full details

Attachments
