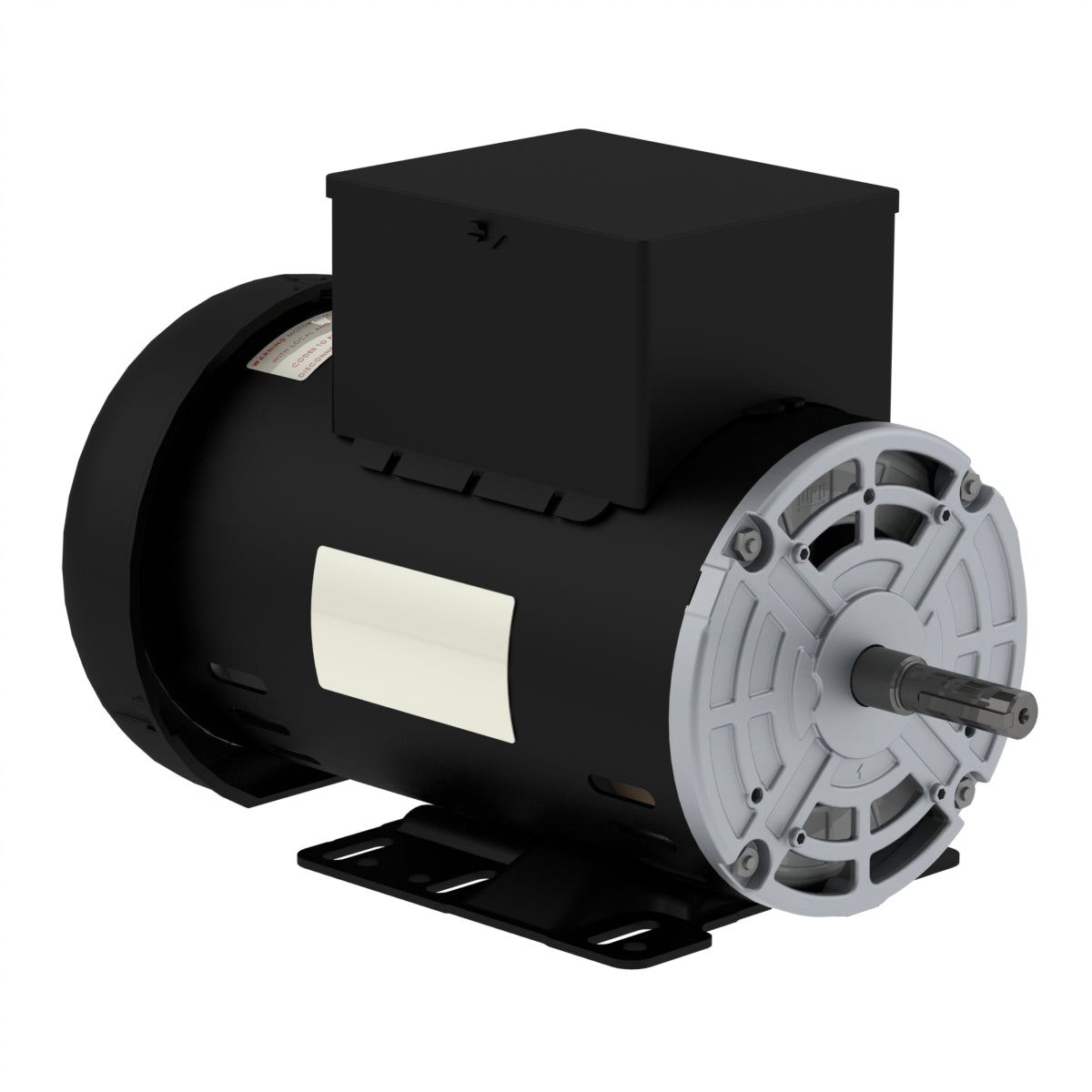

Weg Electric 00536OS1CCDW184Y-S, 5 Hp, 3600 Rpm, W182/4Y Frame, 208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel Compressor Duty.

00536OS1CCDW184Y-S, 5 Hp, 3600 Rpm, W182/4Y Frame, 208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel Compressor Duty.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-3
Terminal box¹ Top
Enclosure IC01 - ODP

Frame W182/4Y
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3465 rpm
Slip 3.75 %
Rated voltage 208-230 V
Rated current 22.4-20.7 A
L. R. Amperes 139-128 A
LRC 6.2x(Code G)
No load current 6.95-6.25 A
Rated torque 7.58 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.4271 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ CCW
