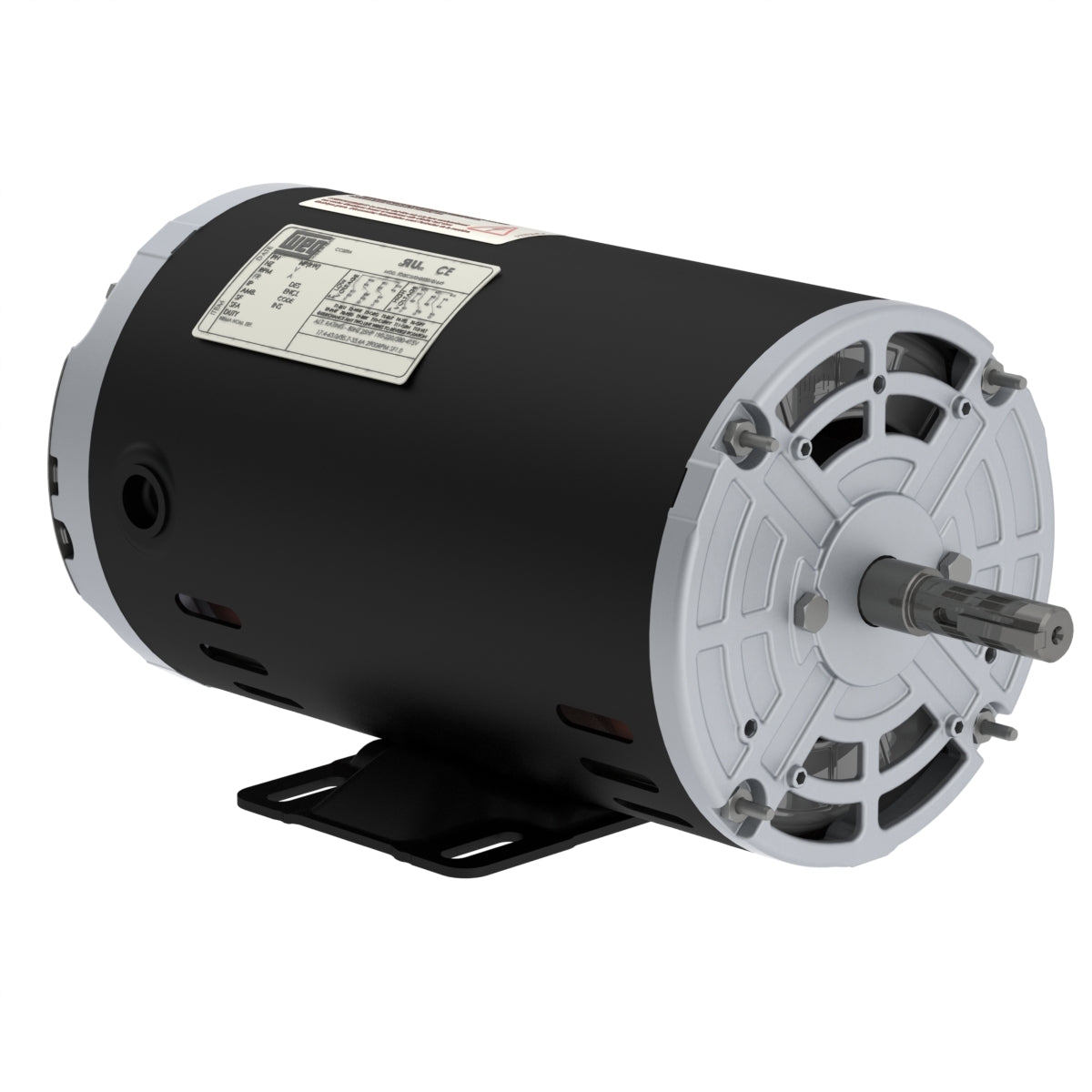

Weg Electric 00536OS3ECD56-S, 5 Hp, 3600 Rpm, 56H FR, 208-230/460 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel .

00536OS3ECD56-S, 5 Hp, 3600 Rpm, 56H FR, 208-230/460 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel .

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56H
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3390 rpm
Slip 5.83 %
Rated voltage 208-230/460 V
Rated current 14.2-12.8/6.40 A
L. R. Amperes 78.1-70.4/35.2 A
LRC 5.5x(Code G)
No load current 0.000-4.80/2.40 A
Rated torque 7.75 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 9s (cold) 5s (hot)
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle S3
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
