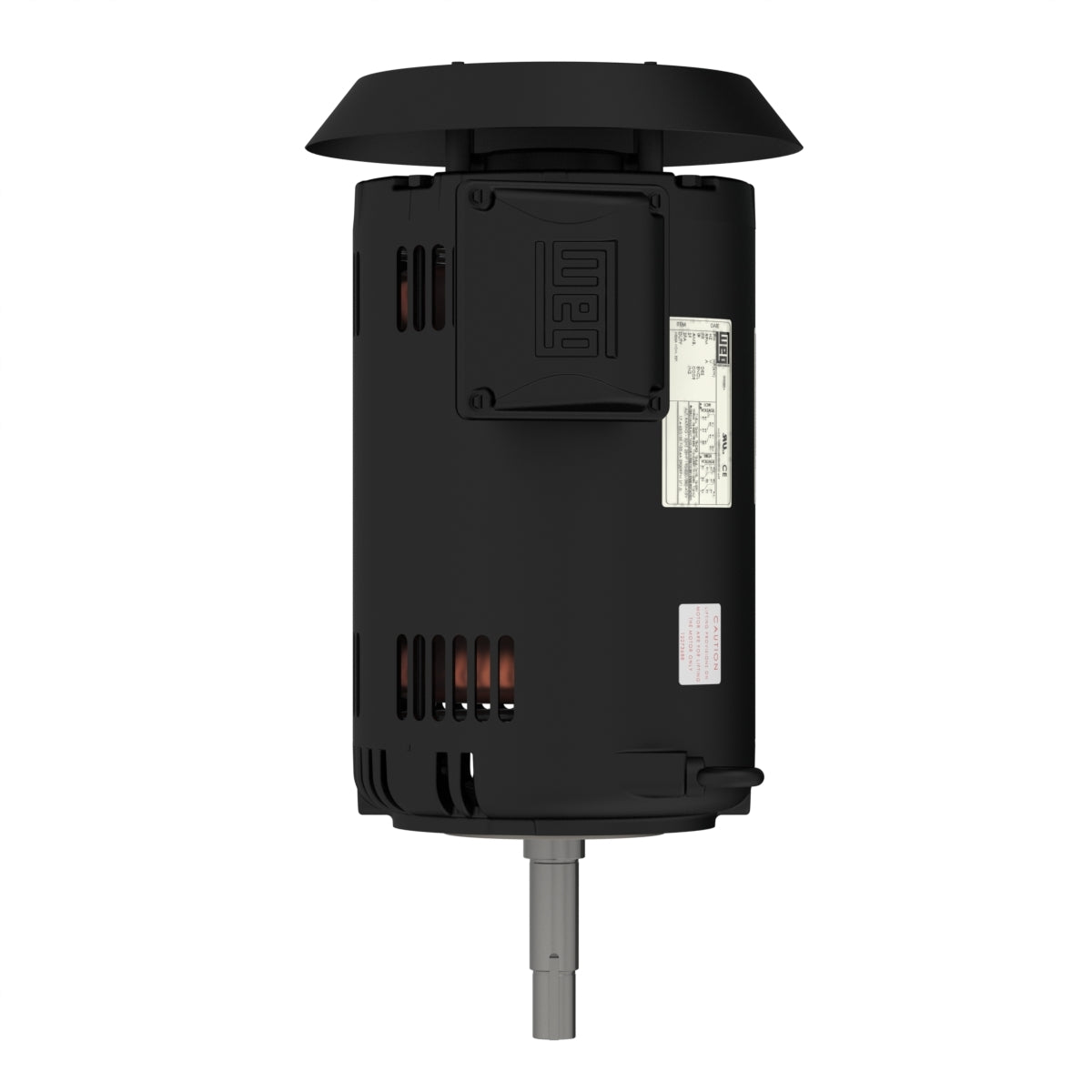

Weg Electric 00536OT3E182JMV-S, 5 Hp, 3600 Rpm, 182/4JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump Efficiency.

00536OT3E182JMV-S, 5 Hp, 3600 Rpm, 182/4JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump Efficiency.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.
Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4JM
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 12.2/6.10 A
L. R. Amperes 92.7/46.4 A
LRC 7.6x(Code J)
No load current 5.15/2.58 A
Rated torque 7.48 ft.lb
Locked rotor torque 190 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.1386 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
