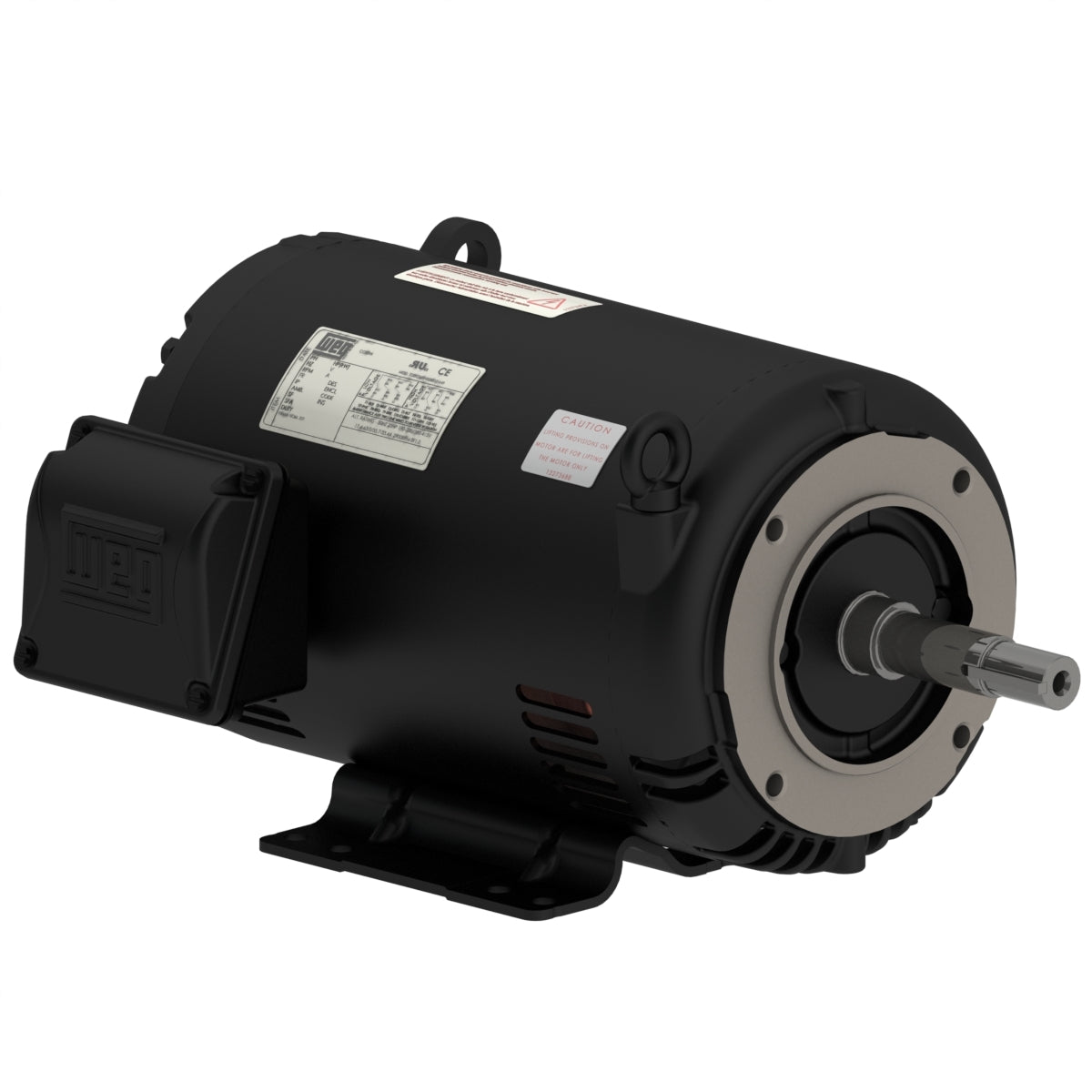

Weg Electric 00536OT3E182JP-S, 5 Hp, 182/4JP Frame, 3600 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JP NEMA Premium Efficiency.

00536OT3E182JP-S, 5 Hp, 182/4JP Frame, 3600 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JP NEMA Premium Efficiency.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. They maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4JP
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 12.2/6.10 A
L. R. Amperes 92.7/46.4 A
LRC 7.6x(Code J)
No load current 5.15/2.58 A
Rated torque 7.48 ft.lb
Locked rotor torque 190 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.1386 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
