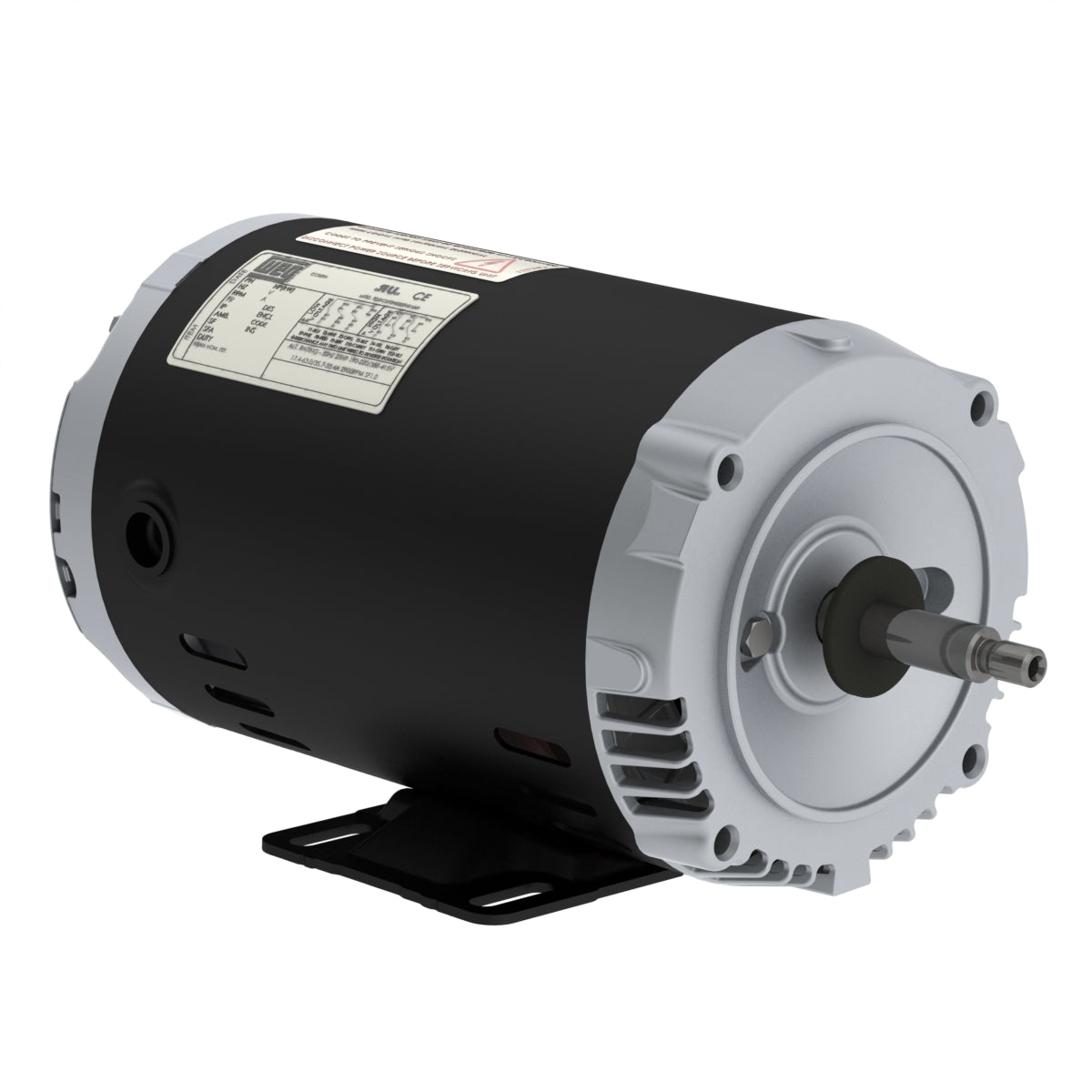

Weg Electric 00536OT3EJP56J-S, 5 Hp, 3600 Rpm, 56HJ FR, 208-230/460//190/380 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Jet Pump.

00536OT3EJP56J-S, 5 Hp, 3600 Rpm, 56HJ FR, 208-230/460//190/380 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Jet Pump.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile three-phase motors provide torque and durability for several applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//190/380 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56HJ
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 208-230/460 V
Rated current 13.6-12.5/6.24 A
L. R. Amperes 136-125/62.4 A
LRC 10.0x(Code L)
No load current 6.00-5.50/2.75 A
Rated torque 7.50 ft.lb
Locked rotor torque 390 %
Breakdown torque 380 %
Locked rotor time 18s (cold) 10s (hot)
Design A
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 57.0 dB(A)
