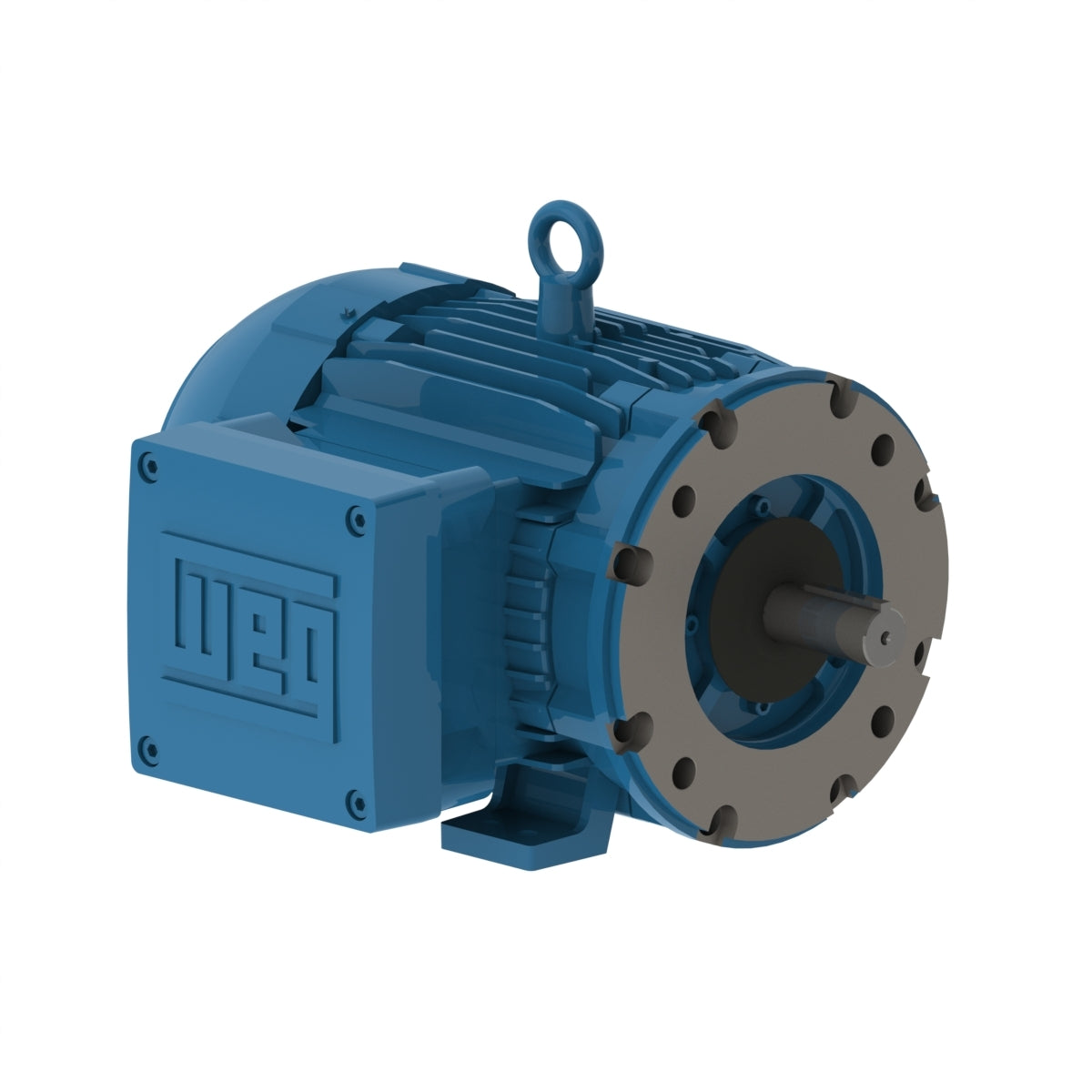

Weg Electric 00536XT3E184TC, 5 Hp, 3600 Rpm, 182/4TC Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Explosion-proof Motor NEMA Premium Efficiency.

00536XT3E184TC, 5 Hp, 3600 Rpm, 182/4TC Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Explosion-proof Motor NEMA Premium Efficiency.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4TC
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 230/460 V
Rated current 12.2/6.10 A
L. R. Amperes 91.5/45.7 A
LRC 7.5x(Code J)
No load current 4.40/2.20 A
Rated torque 7.52 ft.lb
Locked rotor torque 250 %
Breakdown torque 380 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 0.1889 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
