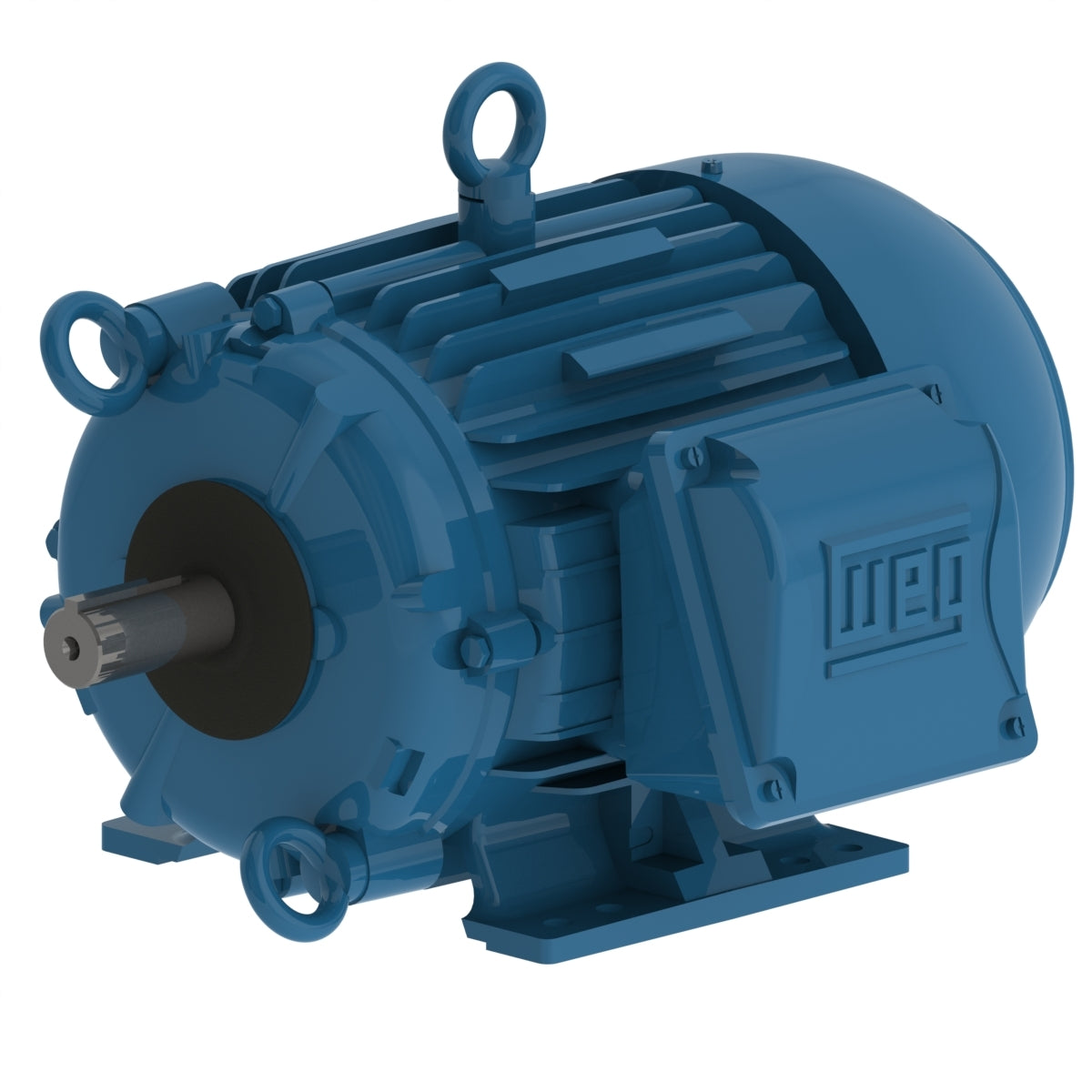

Weg Electric 00589EP3QCT184V-W22, 1 1/2-5 Hp, 900/1800 Rpm, 182/4T FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

00589EP3QCT184V-W22, 1 1/2-5 Hp, 900/1800 Rpm, 182/4T FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 1.25/5.0 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 460 V
Rated current 6.67 A
L. R. Amperes 49.4 A
LRC 7.4x(Code J)
No load current 3.70 A
Rated torque 15.0 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.4461 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
