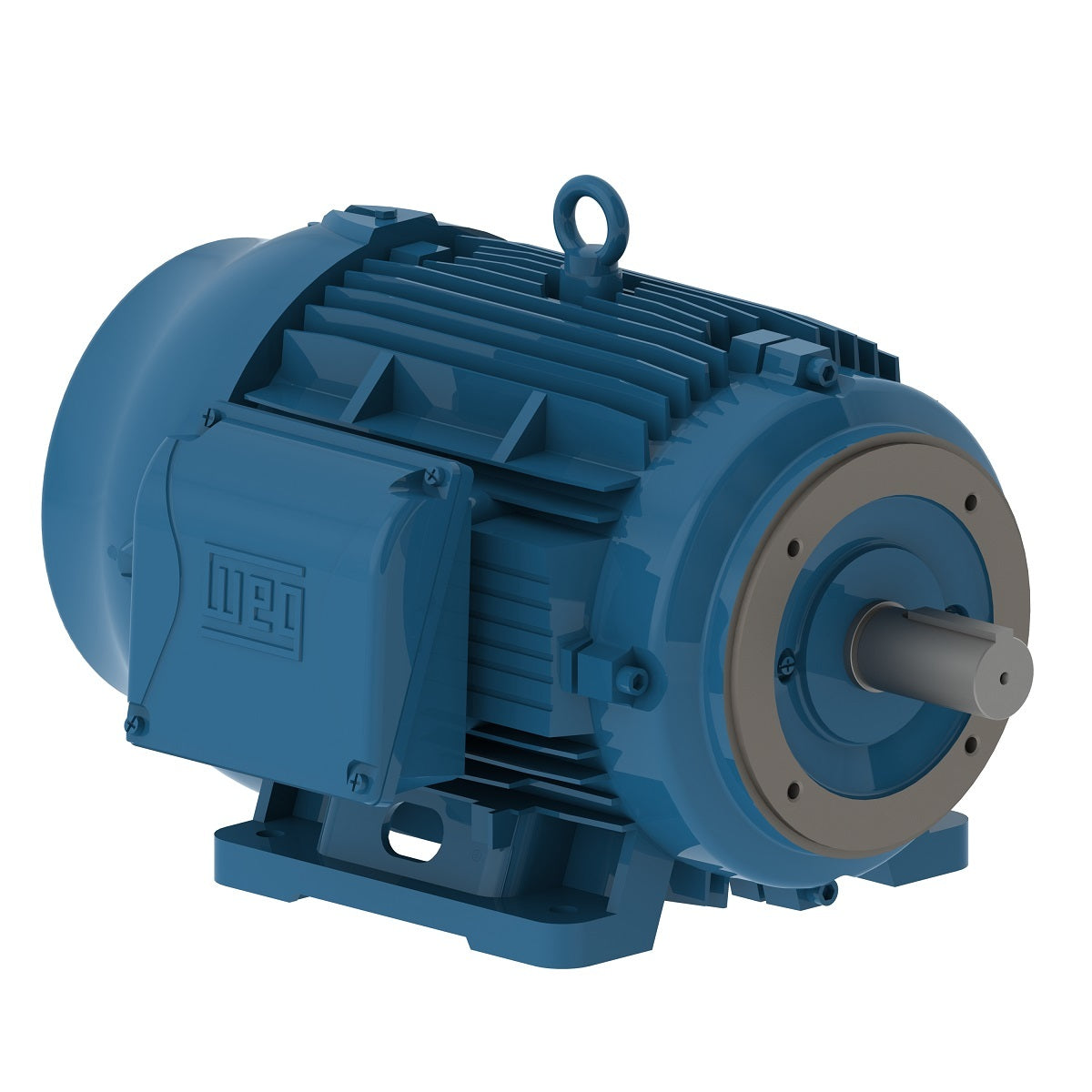

Weg Electric 00709ET3E256TC-W22, 7 1/2 Hp, 254/4TC Frame, 900 RPM, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

00709ET3E256TC-W22, 7 1/2 Hp, 254/4TC Frame, 900 RPM, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 22.2/11.1 A
L. R. Amperes 118/58.8 A
LRC 5.3x(Code G)
No load current 13.0/6.50 A
Rated torque 44.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
