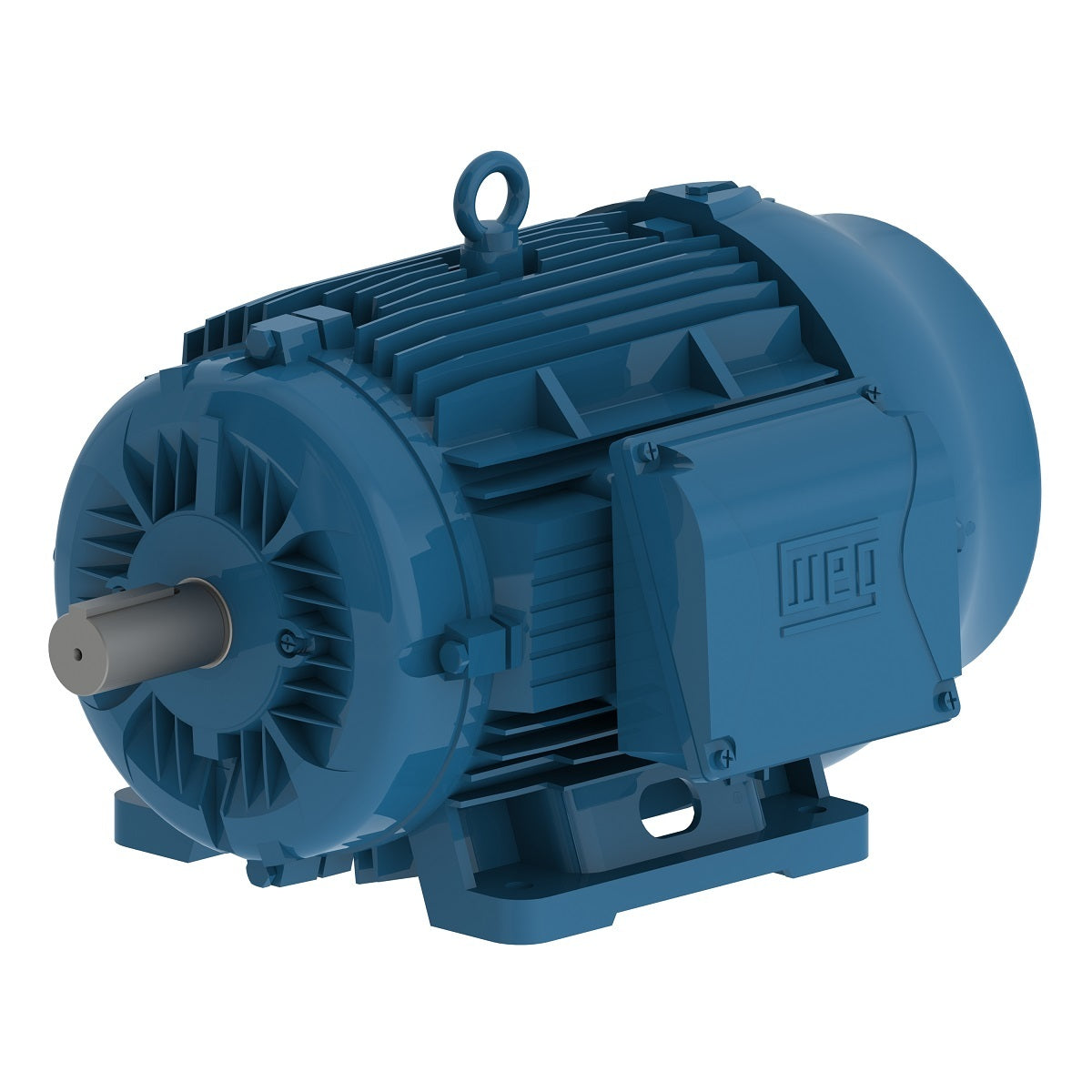

Weg Electric 00709ET3Y160L-W22, 10 Hp, 900 Rpm, 160L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric.

00709ET3Y160L-W22, 10 Hp, 900 Rpm, 160L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 160L
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 460 V
Rated current 15.0 A
L. R. Amperes 85.5 A
LRC 5.7
No load current 9.51 A
Rated torque 59.7 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
