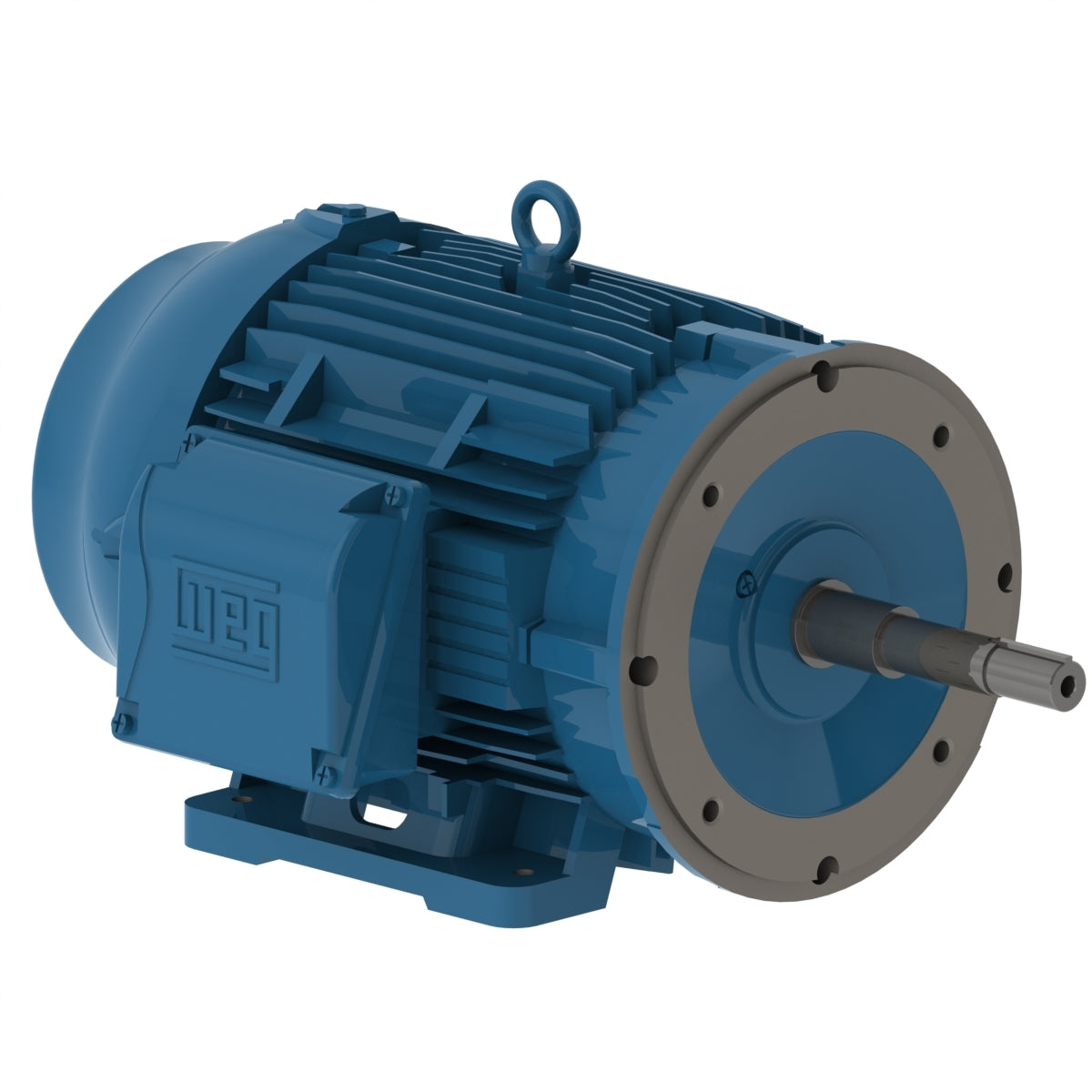

Weg Electric 00712ET3E254JP-W22, 7 1/2 Hp, 1200 Rpm, 254/6JP Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, Closed Coupled pump JP NEMA Premium Efficiency.

00712ET3E254JP-W22, 7 1/2 Hp, 1200 Rpm, 254/6JP Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, Closed Coupled pump JP NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6JP
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 21.0-19.0/9.48 A
L. R. Amperes 143-129/64.5 A
LRC 6.8x(Code H)
No load current 0.000-9.00/4.50 A
Rated torque 33.5 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 54s (cold) 30s (hot)
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
