Industrial Motors

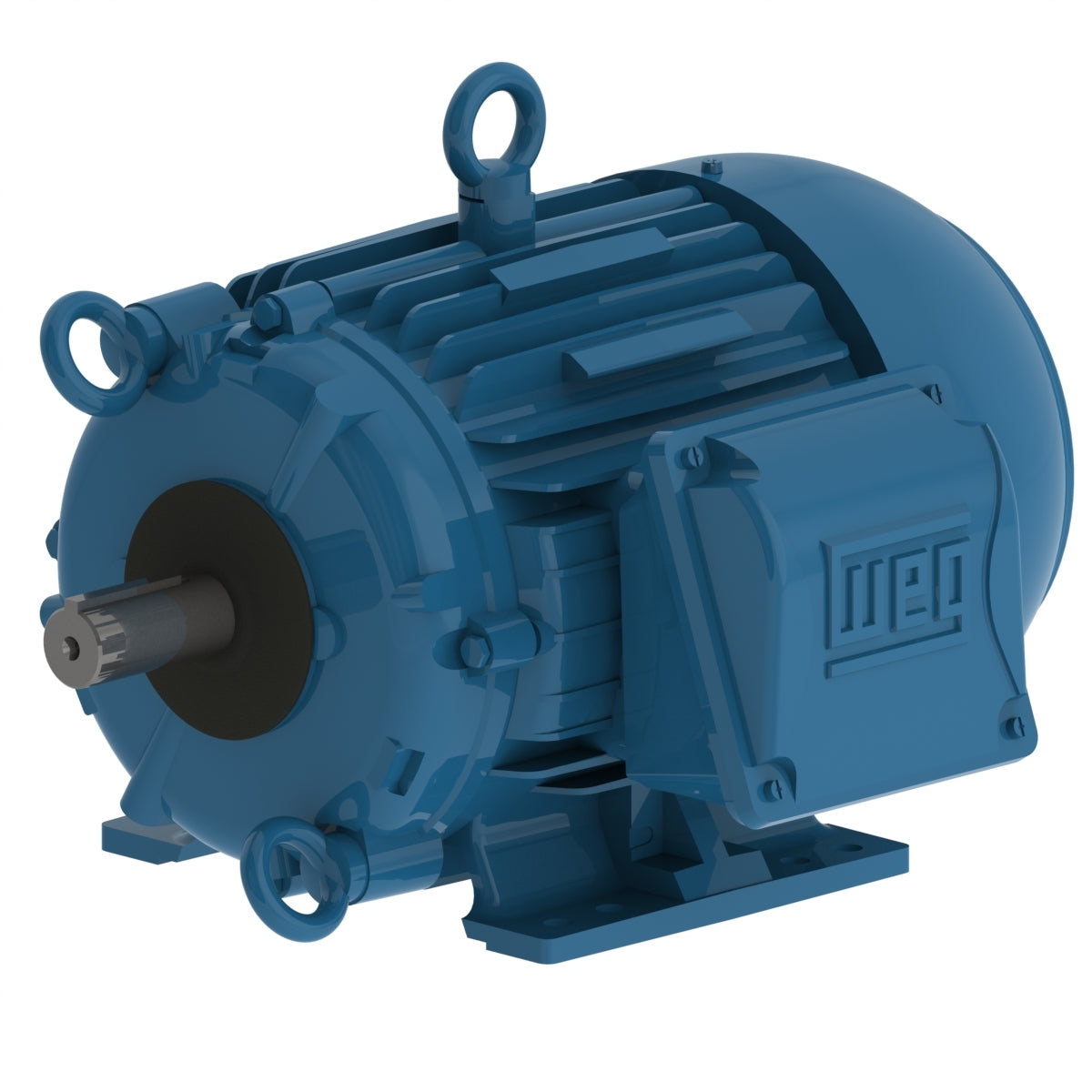

Weg Electric 00712ET3ECT254T-W22, 7 1/2 Hp, 1200 Rpm, 254T FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower NEMA Premium Efficiency, 11976366

Weg Electric 00712ET3ECT254T-W22, 7 1/2 Hp, 1200 Rpm, 254T FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower NEMA Premium Efficiency, 11976366

$2,165.37
$2,165.37
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00712ET3ECT254T-W22, 7 1/2 Hp, 1200 Rpm, 254T FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower NEMA Premium Efficiency, 11976366

SPECIFICATIONS

Manufacturer Part Number 00712ET3ECT254T-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description 7.5HP 1200 3 60 208-230/460V, J2
Type General Purpose
Horsepower 7-1/2 hp
Speed 1,200 RPM
RPM 1,200 RPM
Phase 3
Frequency 60 Hz
NEMA Frame 254T
AC Voltage 208 VAC
Nominal Voltage 208 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 9.48 A
Service Factor 1.25
Composition Cast Iron
Net Weight 293.933 lbs
Gross Weight 293.933 lbs
