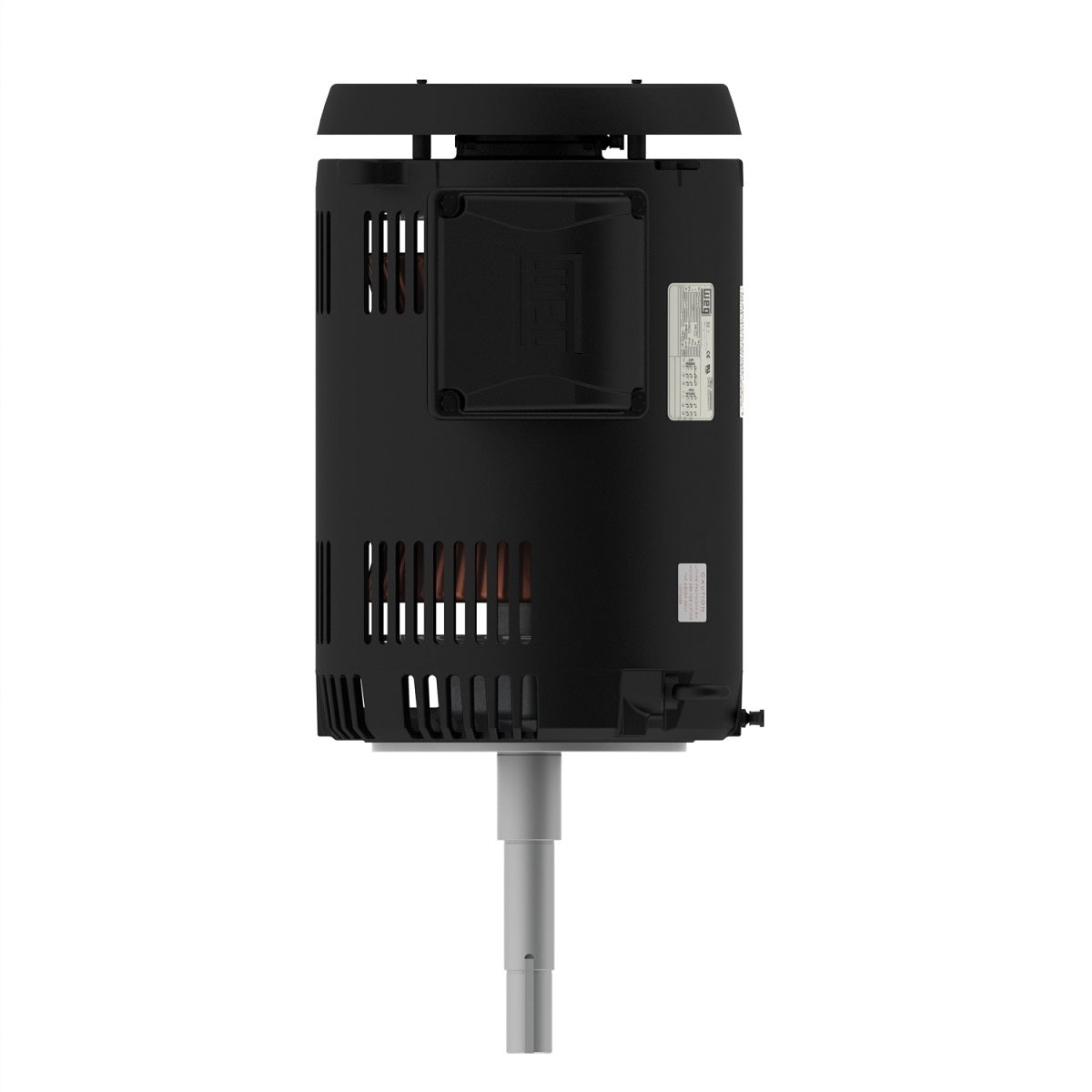

Weg Electric 00712OT3E254JPV, 7 1/2 Hp, 254/6JP Frame, 1200 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

00712OT3E254JPV, 7 1/2 Hp, 254/6JP Frame, 1200 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. They maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 7.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6JP
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 20.4/10.2 A
L. R. Amperes 104/52.0 A
LRC 5.1x(Code F)
No load current 10.7/5.37 A
Rated torque 33.5 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 66s (cold) 37s (hot)
Moment of inertia (J) 2.00 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
