Industrial Motors

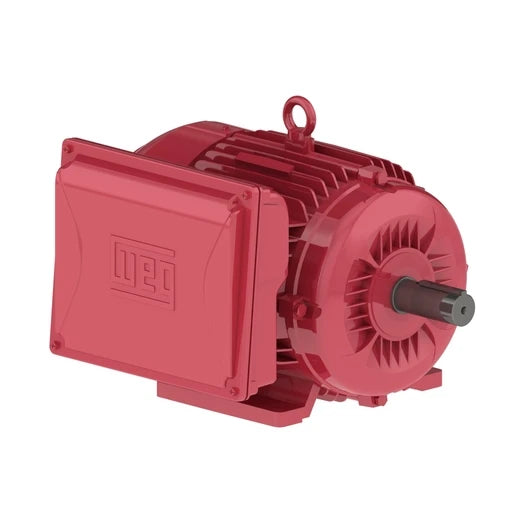

Weg Electric 00718ES1DFD215T-W22, 7.5 HP, 213/5T FR, 1Ph, 230 V, 60 Hz, TEFC, Foot-mounted, 14229636

Weg Electric 00718ES1DFD215T-W22, 7.5 HP, 213/5T FR, 1Ph, 230 V, 60 Hz, TEFC, Foot-mounted, 14229636

$1,302.07
$1,302.07
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00718ES1DFD215T-W22, 7.5 HP, 213/5T FR, 1Ph, 230 V, 60 Hz, TEFC, Foot-mounted, 14229636

SPECIFICATIONS

Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 230 V
Rated current 31.7 A
L. R. Amperes 244 A
LRC 7.7x(Code J)
No load current 12.3 A
Rated torque 22.5 ft.lb
Locked rotor torque 370 %
Breakdown torque 260 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.09 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 180 lb





View full details
