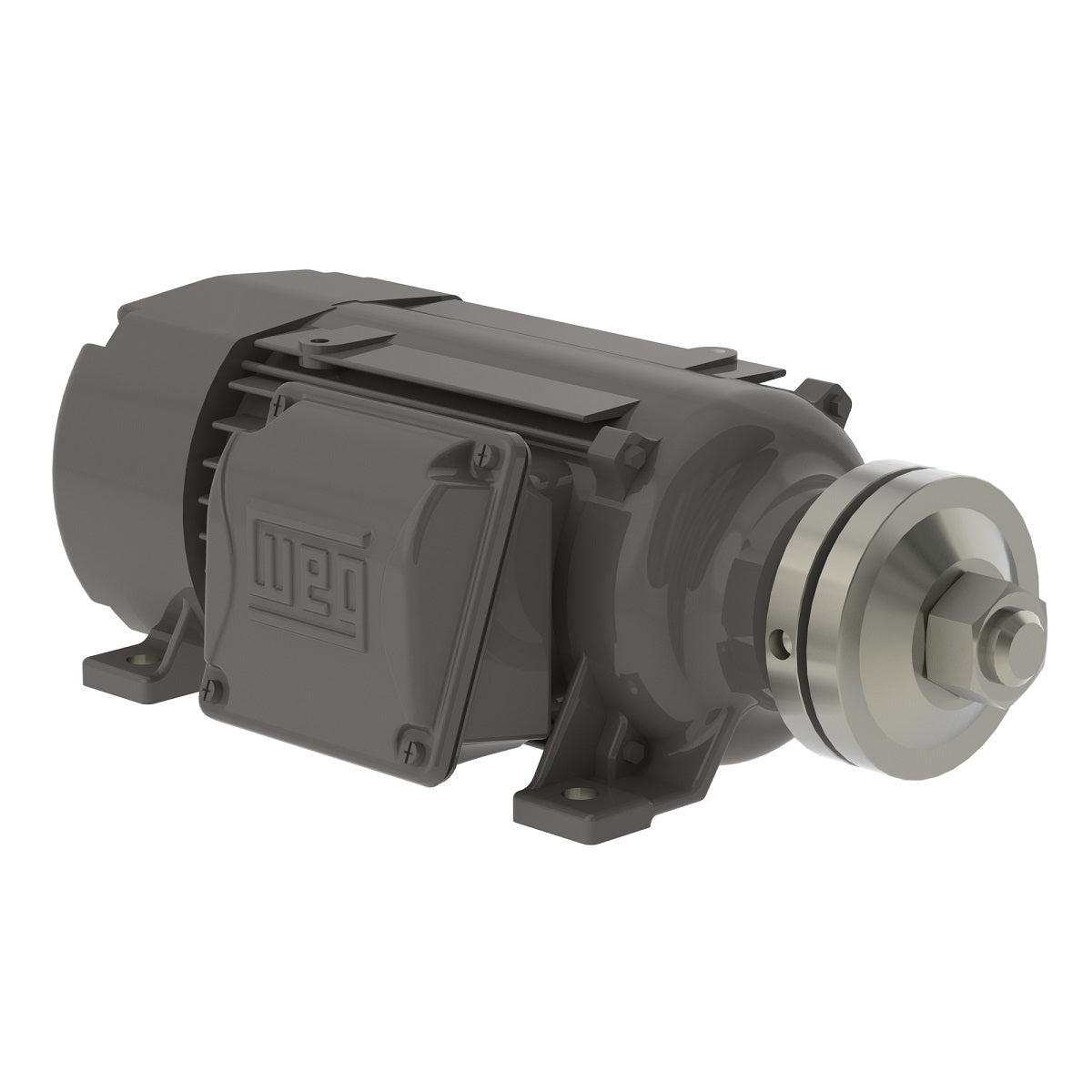

Weg Electric 00718ES3ESA90LL, 7 1/2 Hp, 1800 Rpm, 90L/MS Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, Saw Arbor Motor Standard Efficiency.

00718ES3ESA90LL, 7 1/2 Hp, 1800 Rpm, 90L/MS Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, Saw Arbor Motor Standard Efficiency.

Engineering Data

Compact motor with cast iron frame that ensures high outputs with smaller frame. It was especially designed for application on circular saw, miter saws, metal cutoff saws, router, disc sanders, wood milling machines, among others.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP54
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange Without
Mounting B3R(D)
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 90L/MS
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 208-230/460 V
Rated current 22.4-20.3/10.1 A
L. R. Amperes 184-166/82.8 A
LRC 8.2
No load current 0.000-10.0/5.02 A
Rated torque 22.8 ft.lb
Locked rotor torque 370 %
Breakdown torque 400 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.3322 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S6
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP54
Enclosure IC411 - TEFC
Mounting B3R(D)
Rotation¹ CW
Noise level² 55.0 dB(A)
