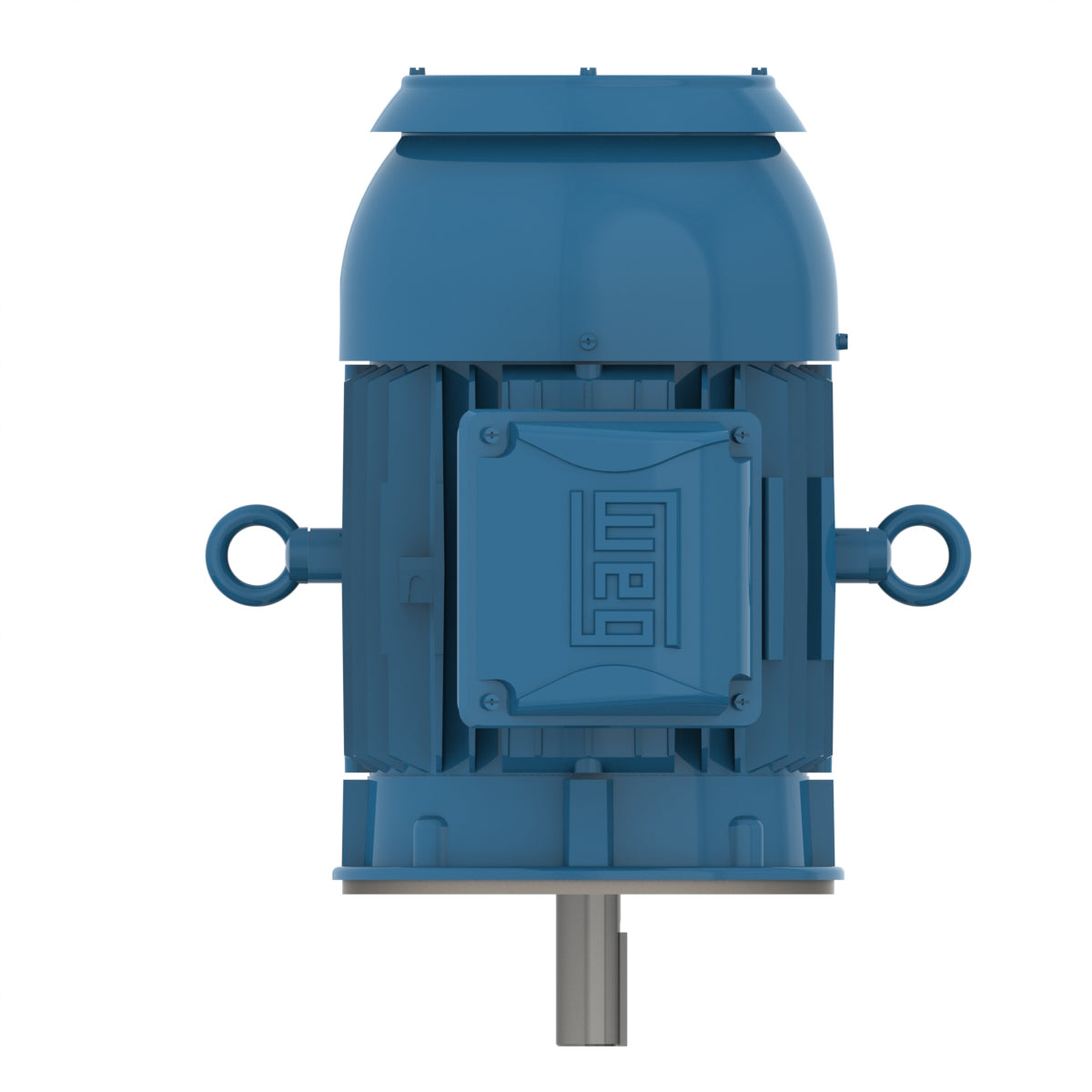

Weg Electric 00718ET3E213HP-W22, 7 1/2 Hp, 1800 Rpm, 213HP FR, 230/460//380 Vac, TEFC, 3 PH, Footless, Premium Efficiency.

00718ET3E213HP-W22, 7 1/2 Hp, 1800 Rpm, 213HP FR, 230/460//380 Vac, TEFC, 3 PH, Footless, Premium Efficiency.

Engineering Data

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Footless
Flange P
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213HP
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 18.4/9.18 A
L. R. Amperes 130/65.2 A
LRC 7.1x(Code H)
No load current 8.80/4.40 A
Rated torque 22.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 310 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 1.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
