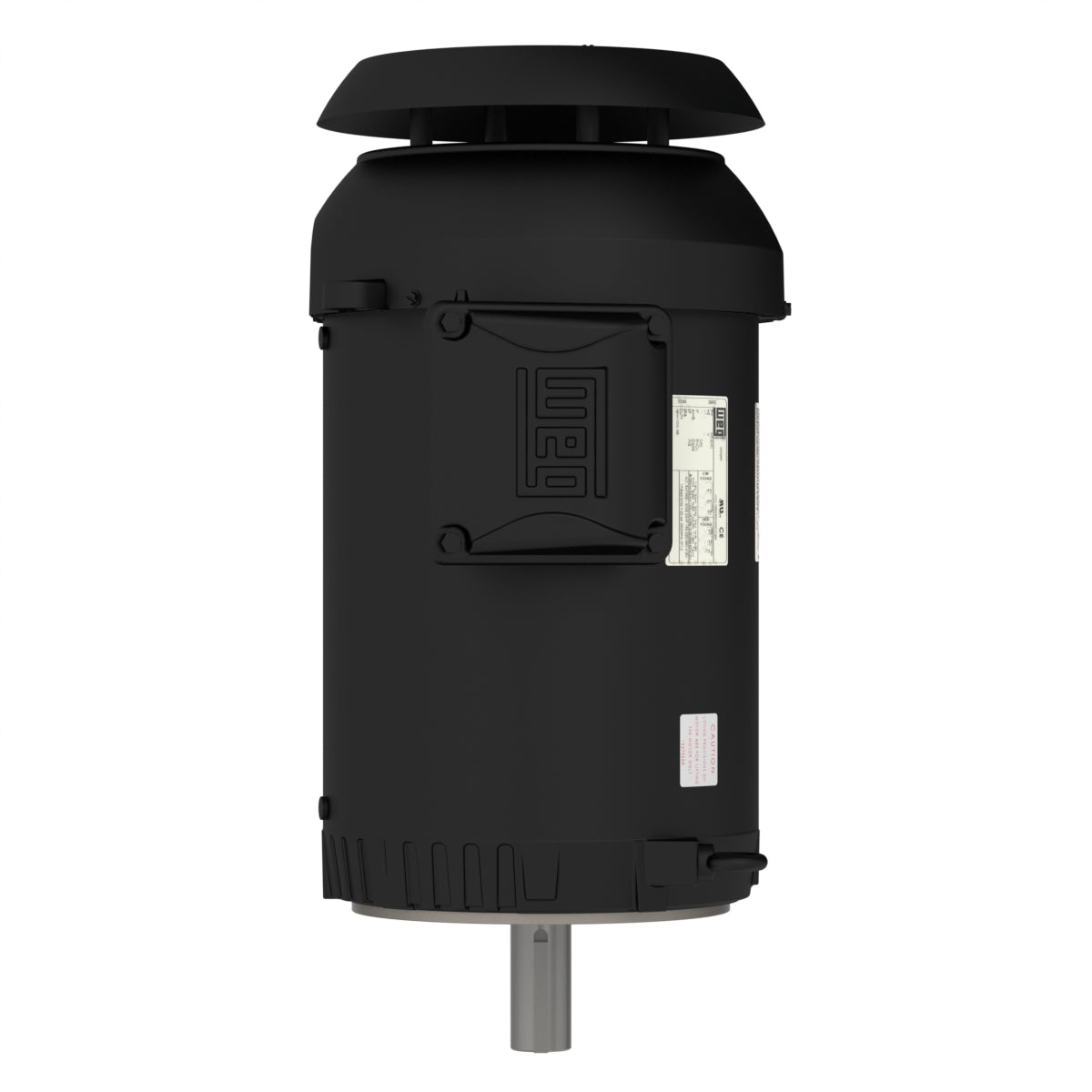

Weg Electric 00718ET3ER213TC-S, 7 1/2 Hp, 1800 Rpm, 213/TC Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

00718ET3ER213TC-S, 7 1/2 Hp, 1800 Rpm, 213/TC Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 18.1/9.07 A
L. R. Amperes 132/66.2 A
LRC 7.3x(Code H)
No load current 8.81/4.41 A
Rated torque 22.3 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.9380 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
