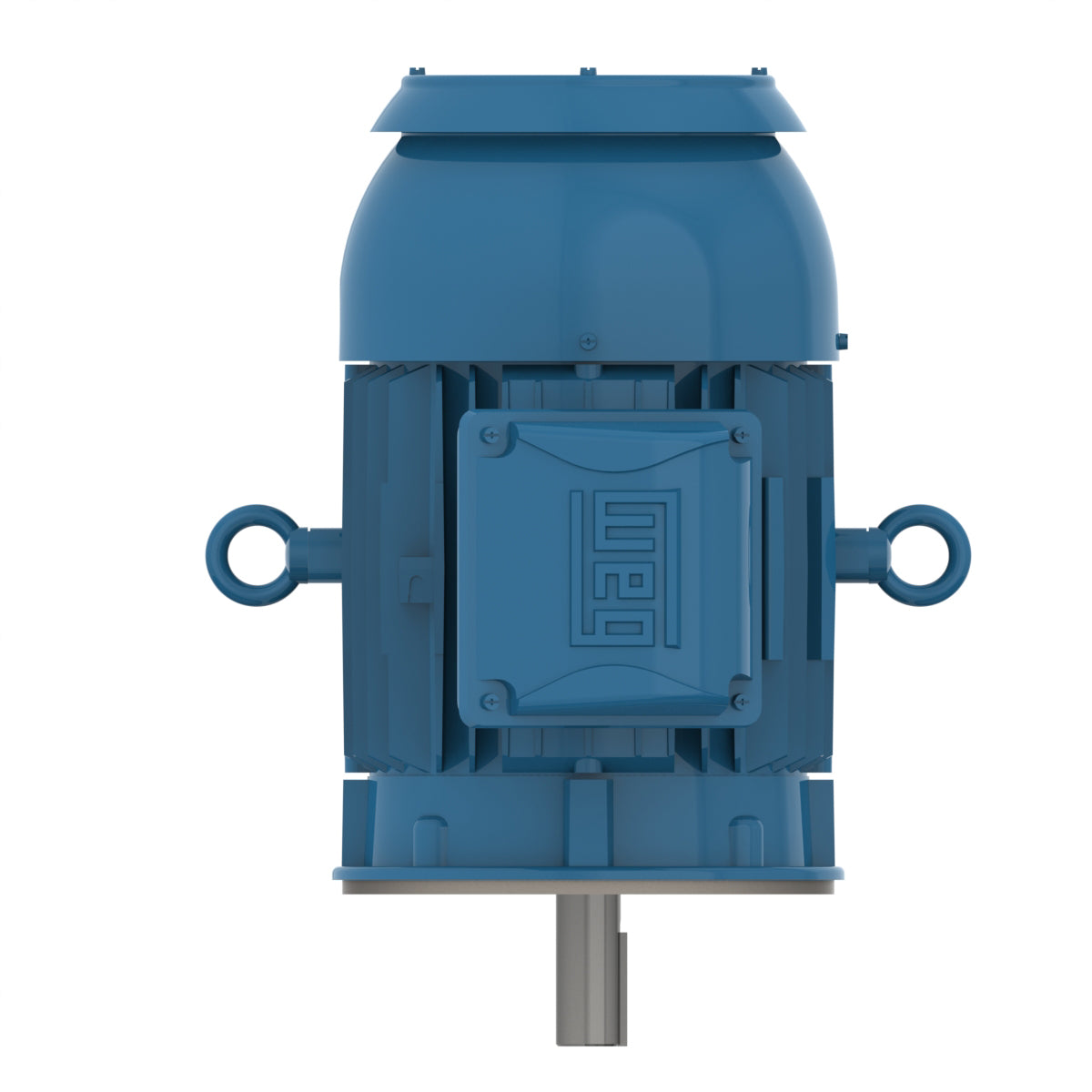

Weg Electric 00718ET3ER213TC-W22, 7 1/2 Hp, 1800 Rpm, 213TC FR, 230/460//380 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency

00718ET3ER213TC-W22, 7 1/2 Hp, 1800 Rpm, 213TC FR, 230/460//380 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213TC
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 18.4/9.18 A
L. R. Amperes 130/65.2 A
LRC 7.1x(Code H)
No load current 8.80/4.40 A
Rated torque 22.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 310 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 1.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
