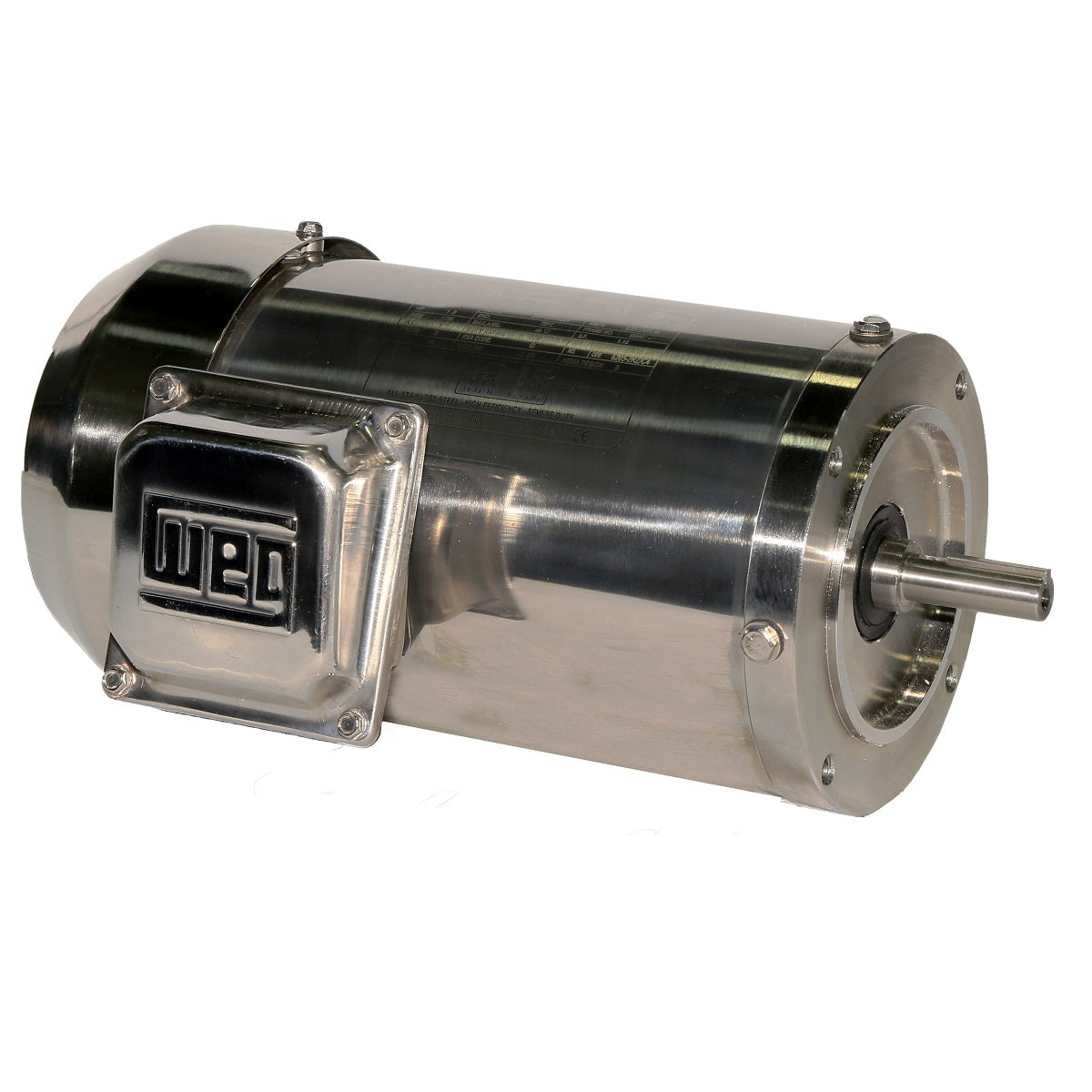

Weg Electric 00718ET3ESS213TCFL, 7 1/2 Hp, 1800 Rpm, 213TC FR, 230/460 Vac, TEFC, Footless, Shark NEMA Premium Efficiency

00718ET3ESS213TCFL, 7 1/2 Hp, 1800 Rpm, 213TC FR, 230/460 Vac, TEFC, Footless, Shark NEMA Premium Efficiency

Engineering Data

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product features
Standard NEMA MG-1
Frame 213TC
Frequency 60 Hz
Number of poles 4
Degree of Protection IP56
Synchronous speed 1800 rpm
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Output rating 7.5 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Footless
Efficiency NEMA Premium Efficiency
Motor Application Shark
Terminal box¹ Left position
Frame 213TC
Voltage 230/460 V
Synchronous speed 1800 rpm
Frame Material Stainless steel
Number of Poles 04
