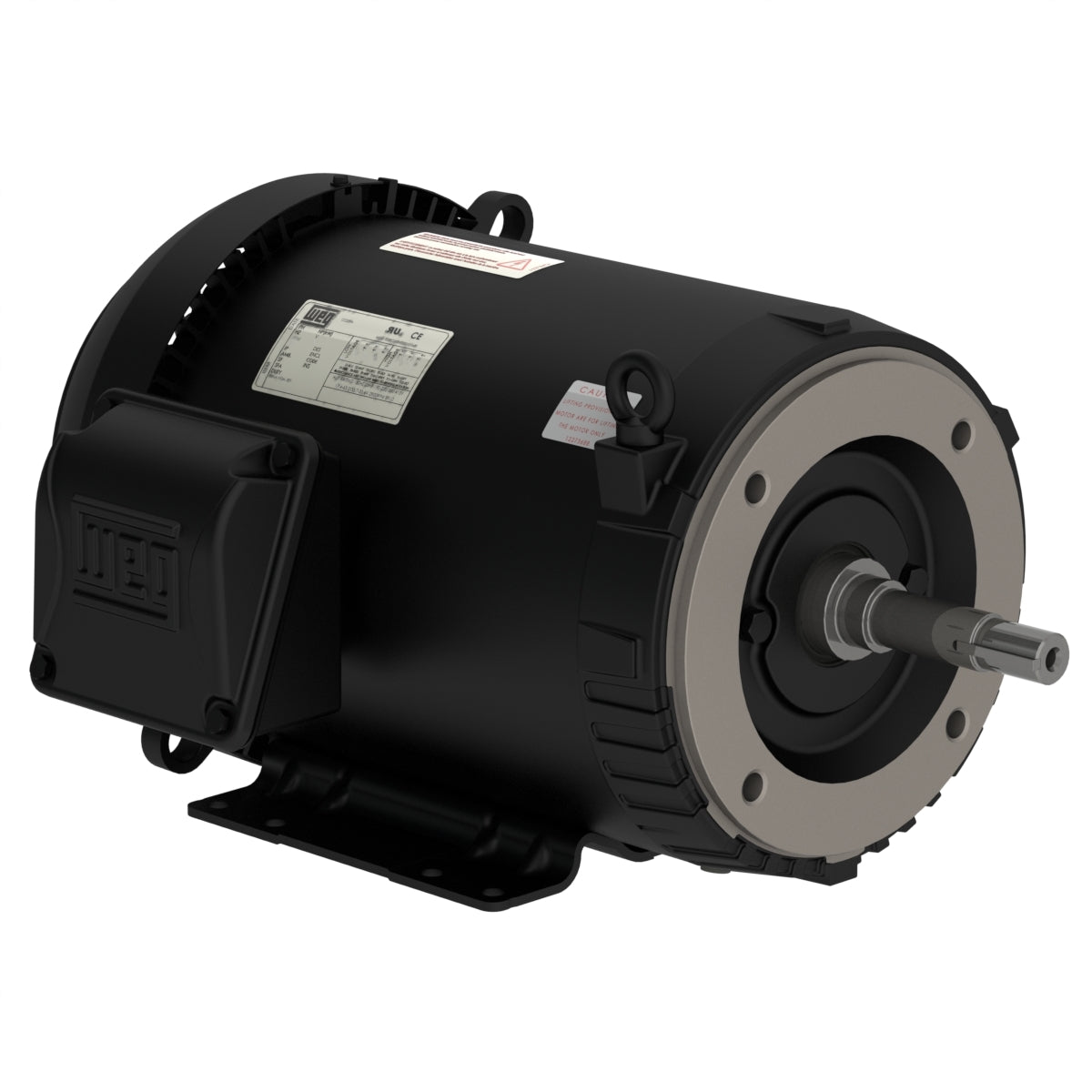

Weg Electric 00718ET3H213JP-S, 7 1/2 Hp, 213/5JP Frame, 1800 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JP Pump NEMA Premium Efficiency.

00718ET3H213JP-S, 7 1/2 Hp, 213/5JP Frame, 1800 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JP Pump NEMA Premium Efficiency.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. They ensure maximum performance and robustness in a great variety of applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5JP
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 575 V
Rated current 7.26 A
L. R. Amperes 53.0 A
LRC 7.3x(Code H)
No load current 3.52 A
Rated torque 22.3 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.9380 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
