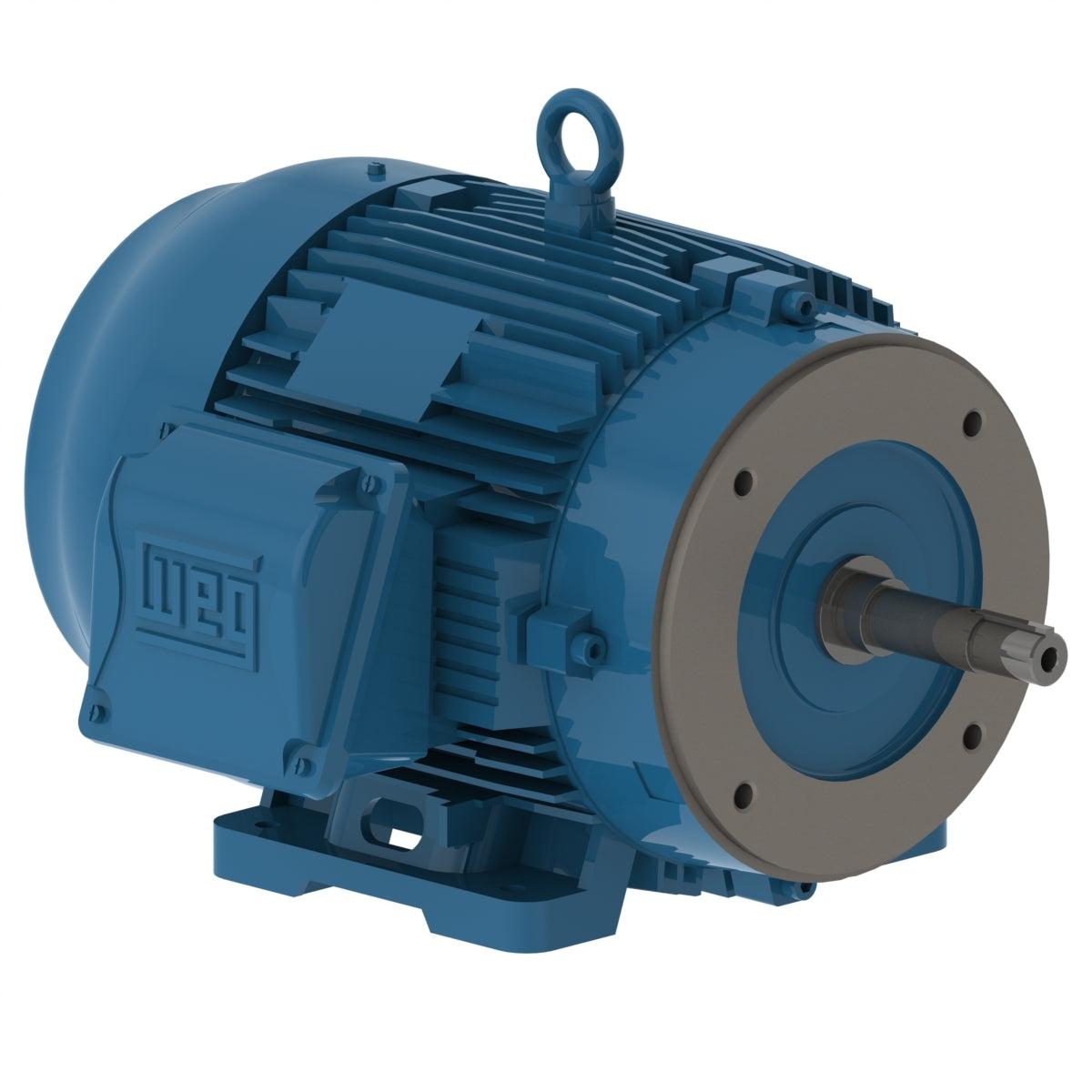

Weg Electric 00718ET3V213JP-W22, 7 1/2 Hp, 1800 Rpm, 213/5JP Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JP NEMA Premium Efficiency.

00718ET3V213JP-W22, 7 1/2 Hp, 1800 Rpm, 213/5JP Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JP NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5JP
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 200/400 V
Rated current 21.1/10.6 A
L. R. Amperes 150/75.0 A
LRC 7.1x(Code H)
No load current 10.1/5.06 A
Rated torque 22.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 310 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 1.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
