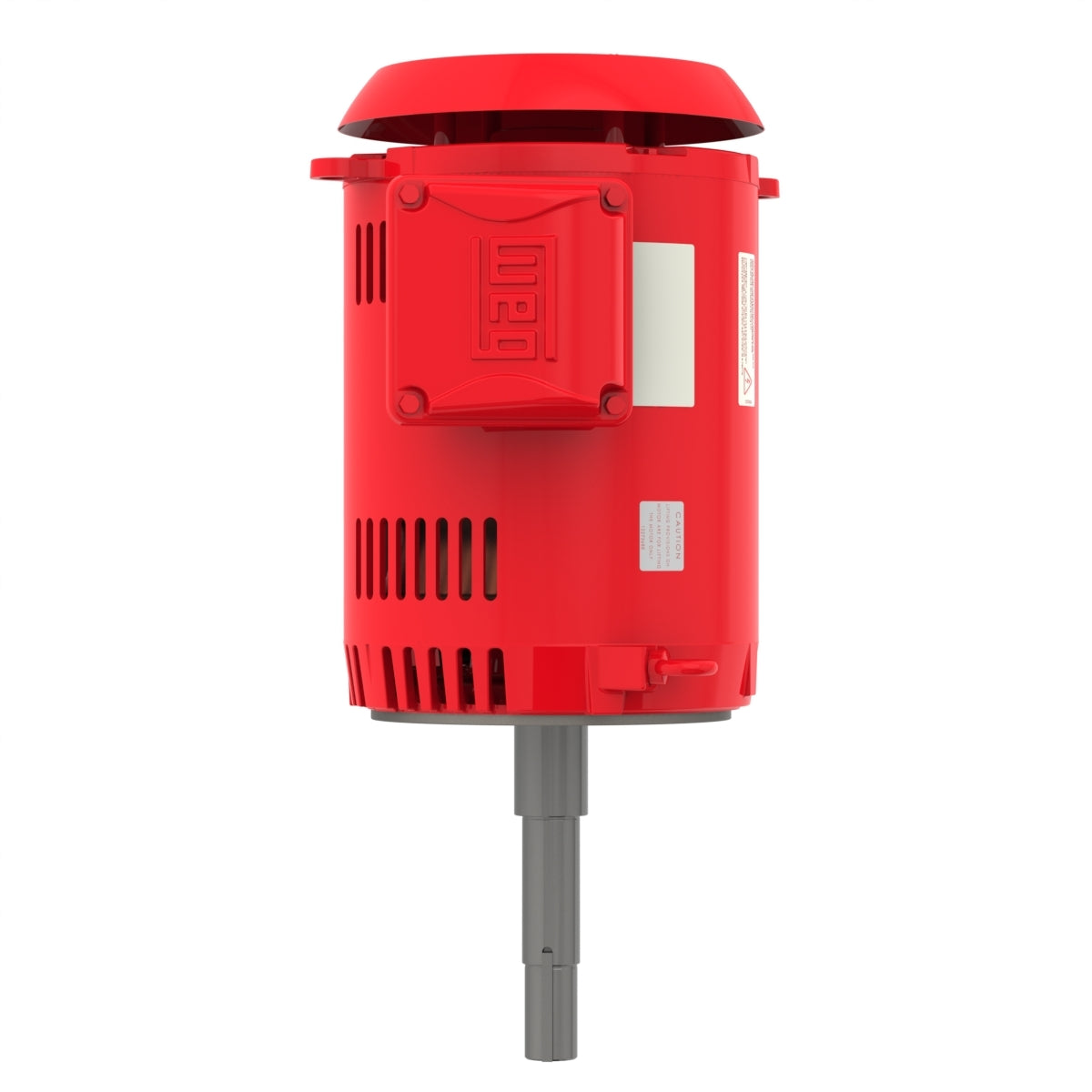

Weg Electric 00718OP3HFP213JPV-S, 7 1/2 Hp, 1800 Rpm, 213/5JP Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JP NEMA Premium Efficiency.

00718OP3HFP213JPV-S, 7 1/2 Hp, 1800 Rpm, 213/5JP Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JP NEMA Premium Efficiency.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JP
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 575 V
Rated current 7.43 A
L. R. Amperes 48.3 A
LRC 6.5x(Code H)
No load current 3.46 A
Rated torque 22.4 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.8040 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
