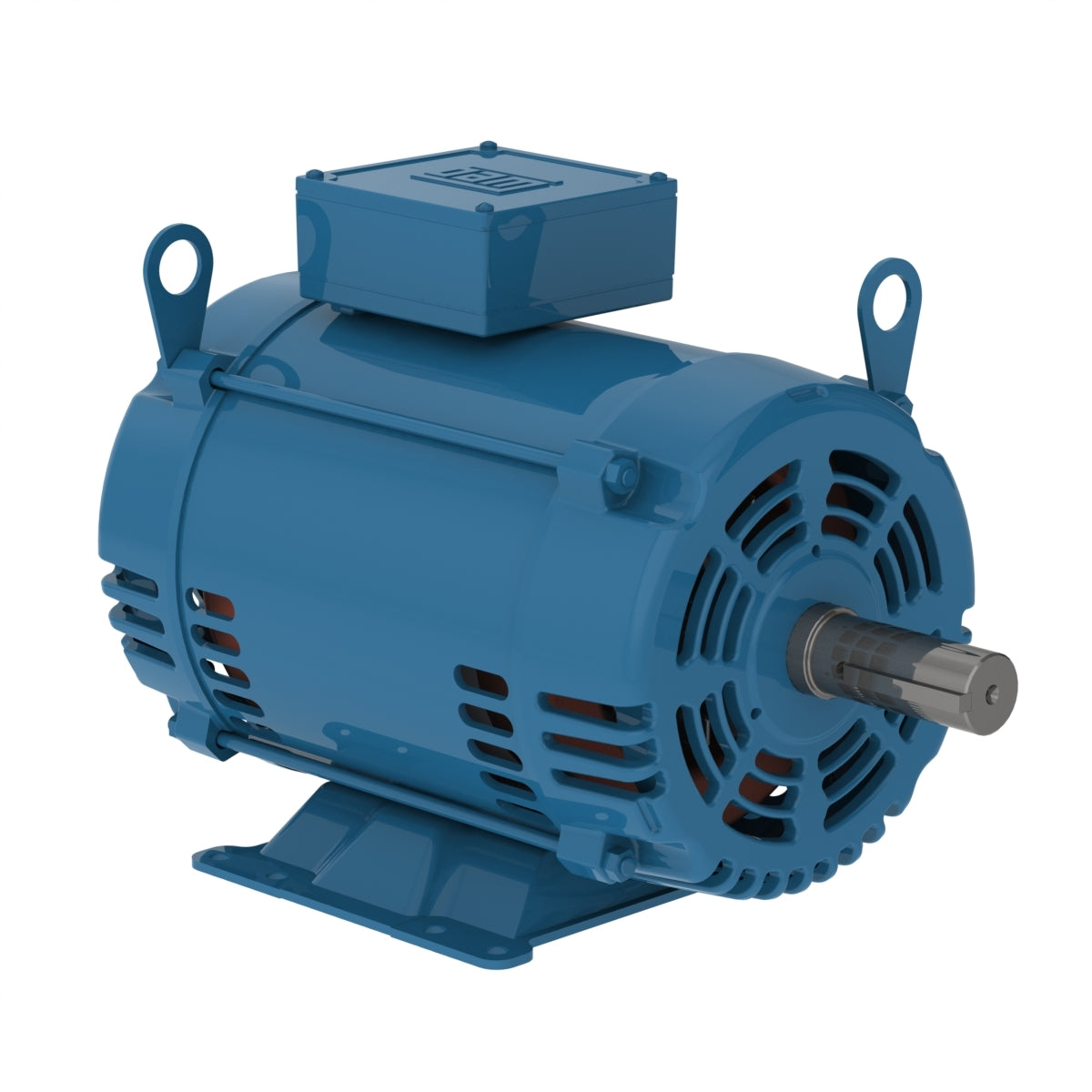

Weg Electric 00718OT3E213TF3, 7 1/2 Hp, 1800 Rpm, 213/5T Frame, 230/460 Vac, ODP, 3 PH, Foot-mounted, General NEMA Premium Efficiency.

00718OT3E213TF3, 7 1/2 Hp, 1800 Rpm, 213/5T Frame, 230/460 Vac, ODP, 3 PH, Foot-mounted, General NEMA Premium Efficiency.
Engineering Data

Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-3
Terminal box¹ Top
Enclosure IC01 - ODP

Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 18.1/9.03 A
L. R. Amperes 135/67.7 A
LRC 7.5x(Code J)
No load current 9.00/4.50 A
Rated torque 22.4 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.9198 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
