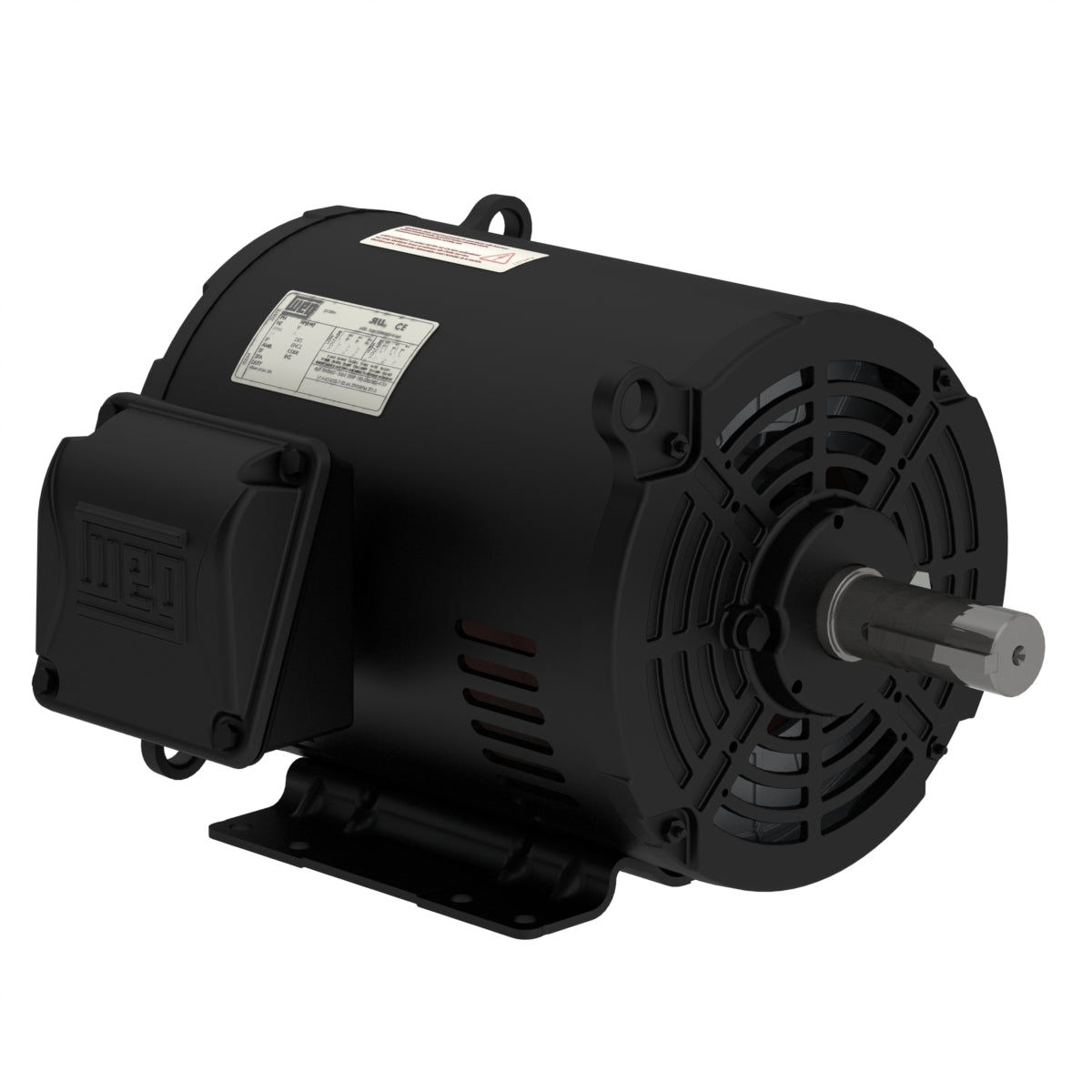

Weg Electric 00718OT3J213T-S, 7 1/2 Hp, 1800 Rpm, 213/5T Frame, 380 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

00718OT3J213T-S, 7 1/2 Hp, 1800 Rpm, 213/5T Frame, 380 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 380 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 11.2 A
L. R. Amperes 80.6 A
LRC 7.2x(Code H)
No load current 5.32 A
Rated torque 22.3 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 1.03 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
