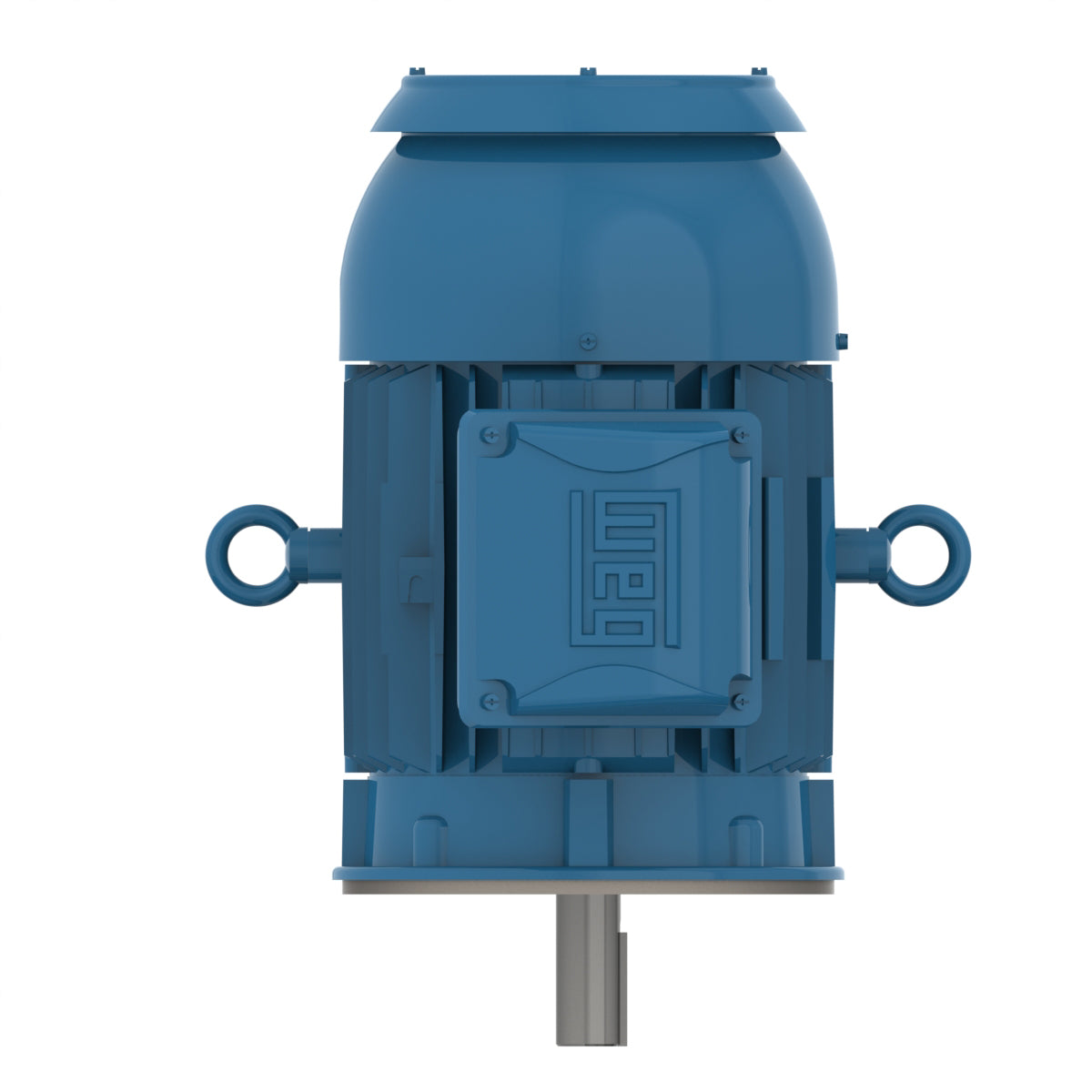

Weg Electric 00718XT3ER213TC, 7 1/2 Hp, 1800 Rpm, 213/5TC Frame, 230/460//380 Vac, TEFC, 3 PH, Footless, W21 Explosion-proof Motor NEMA Premium Efficiency.

00718XT3ER213TC, 7 1/2 Hp, 1800 Rpm, 213/5TC Frame, 230/460//380 Vac, TEFC, 3 PH, Footless, W21 Explosion-proof Motor NEMA Premium Efficiency.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 18.8/9.41 A
L. R. Amperes 126/63.0 A
LRC 6.7x(Code H)
No load current 8.00/4.00 A
Rated torque 22.3 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 1.38 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
