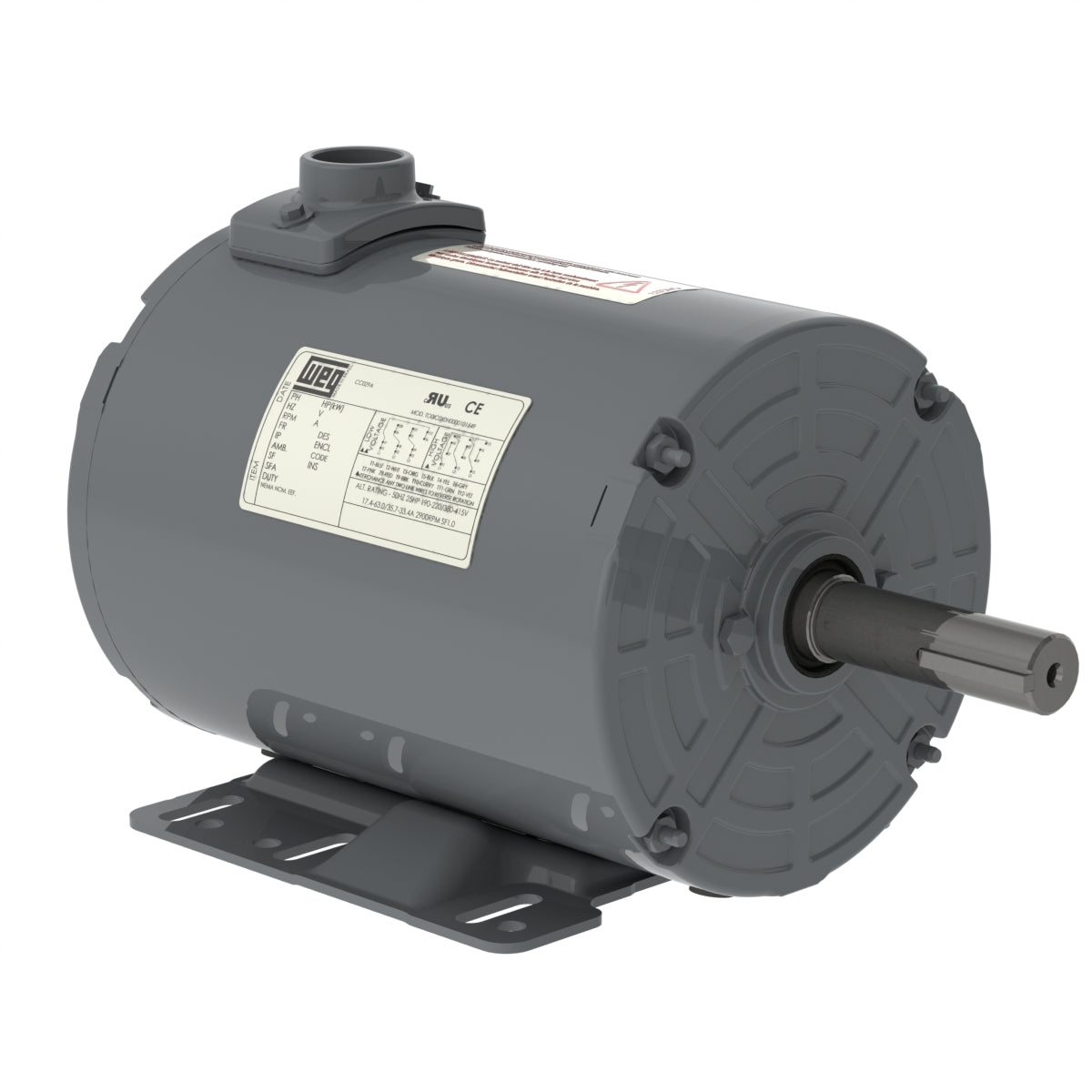

Weg Electric 00736AP3EGD184TZ-S, 5 Hp, 182/4TZ Frame, 3600 RPM, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, Rolled Steel Grain Dryer Standard Efficiency.

00736AP3EGD184TZ-S, 5 Hp, 182/4TZ Frame, 3600 RPM, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, Rolled Steel Grain Dryer Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 5.0-7.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-3
Terminal box¹ Top
Enclosure IC410 - TEAO

Frame 182/4TZ
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 208-230/460 V
Rated current 14.3-12.9/6.45 A
L. R. Amperes 160-144/72.2 A
LRC 11.2x(Code N)
No load current 6.31-7.32/3.66 A
Rated torque 7.43 ft.lb
Locked rotor torque 390 %
Breakdown torque 520 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.1922 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-3
Rotation¹ CCW
