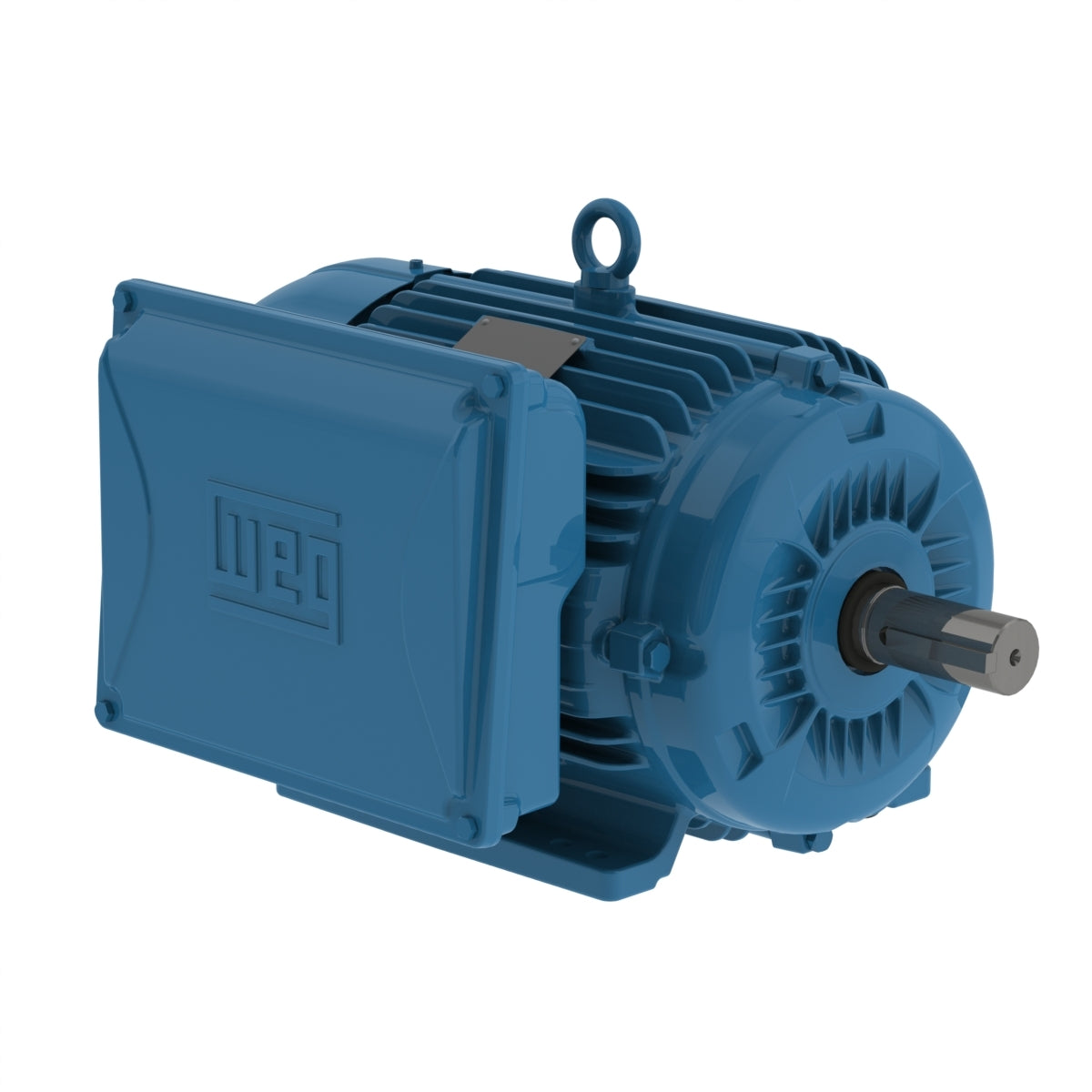

Weg Electric 00736ES1B213T-W22, 7 1/2 Hp, 213/5T Frame, 3600 RPM, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, W22.

00736ES1B213T-W22, 7 1/2 Hp, 213/5T Frame, 3600 RPM, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, W22.

Engineering Data

High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 115/208-230 V
Rated current 61.4/33.9-30.7 A
L. R. Amperes 497/275-249 A
LRC 8.1x(Code J)
No load current 20.8/13.3-10.4 A
Rated torque 11.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 310 %
Locked rotor time 12s (cold) 7s (hot)
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
