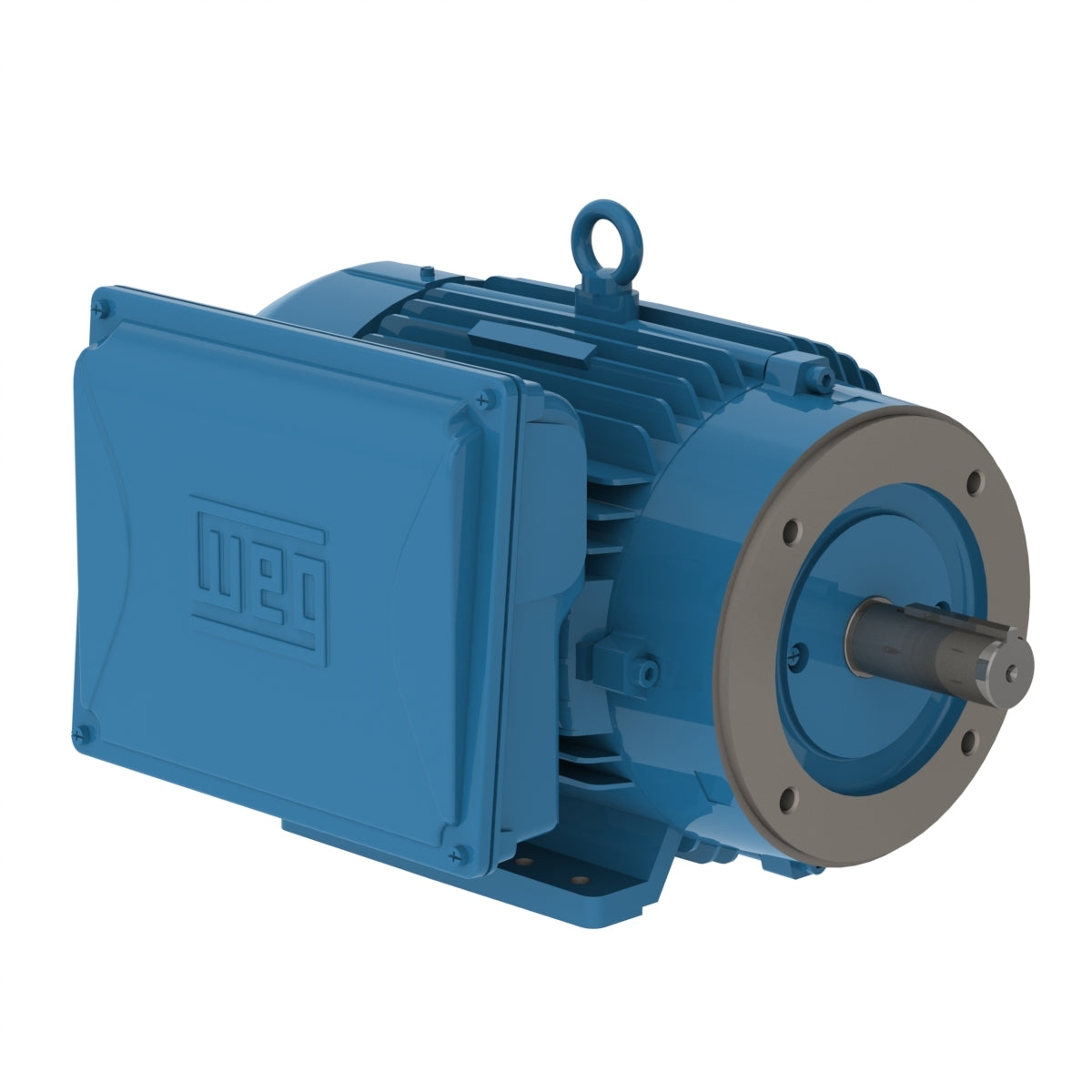

Weg Electric 00736ES1C213JP-W22, 7 1/2 Hp, 3600 Rpm, 213/5JP Frame, 208-230 Vac, TEFC, 3 PH, Foot-mounted, JP Pump.

00736ES1C213JP-W22, 7 1/2 Hp, 3600 Rpm, 213/5JP Frame, 208-230 Vac, TEFC, 3 PH, Foot-mounted, JP Pump.

Engineering Data

High starting torque.
For applications on commercial and industrial pumps (JM/JP - mechanical seal/gasket).
Suitable for domestic and rural power supply conditions.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5JP
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230 V
Rated current 30.5-28.3 A
L. R. Amperes 220-204 A
LRC 7.2x(Code G)
No load current 5.69-6.60 A
Rated torque 11.2 ft.lb
Locked rotor torque 280 %
Breakdown torque 290 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.5550 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
