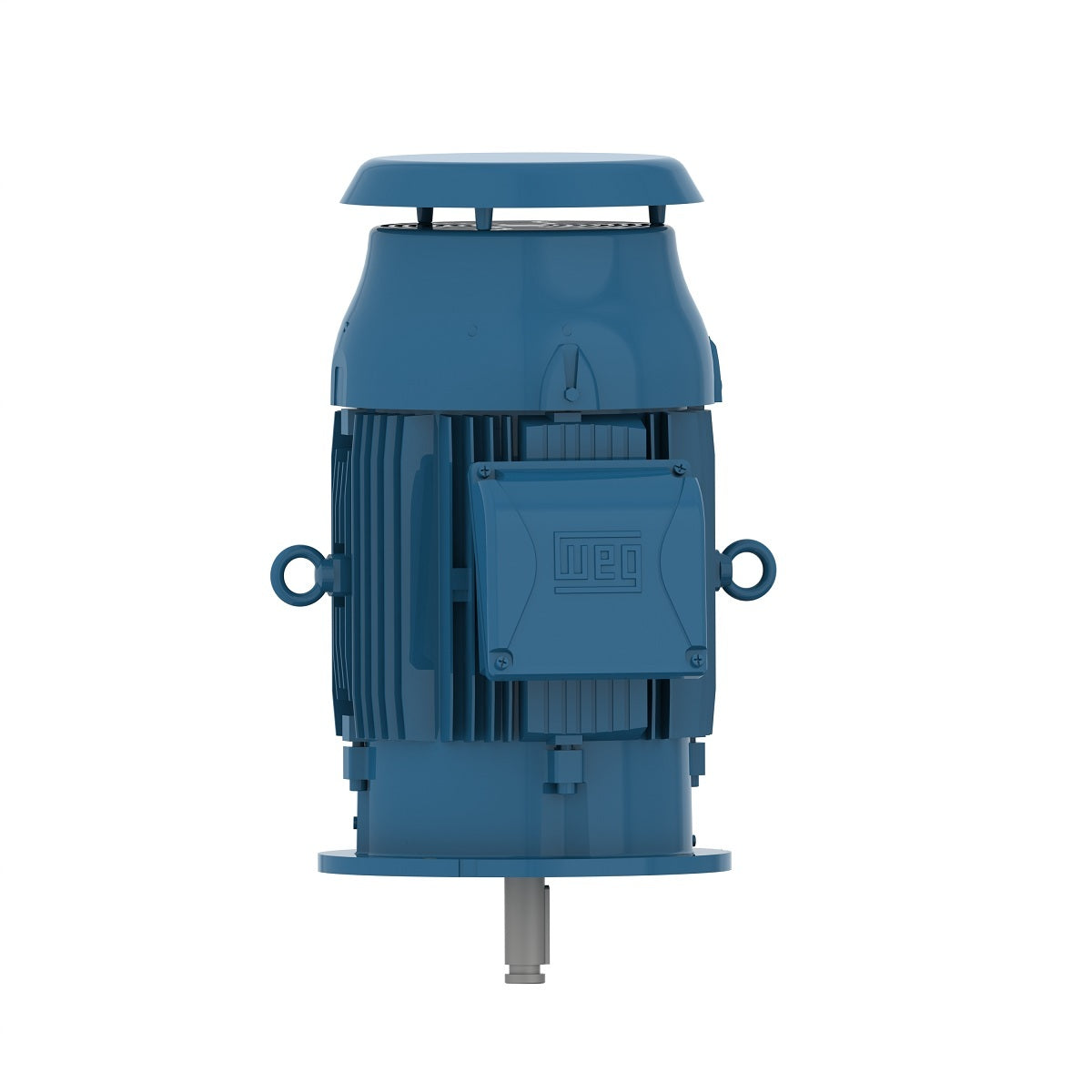

Weg Electric 00736ET3E184HP-W22, 7 1/2 Hp, 3600 Rpm, L184HP Frame, 208-230/460//380 Vac, TEFC, 3 PH, Footless, W22 P Base NEMA Premium Efficiency.

00736ET3E184HP-W22, 7 1/2 Hp, 3600 Rpm, L184HP Frame, 208-230/460//380 Vac, TEFC, 3 PH, Footless, W22 P Base NEMA Premium Efficiency.

Engineering Data

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting Footless
Flange P
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame L184HP
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 230/460 V
Rated current 17.5/8.76 A
L. R. Amperes 144/71.8 A
LRC 8.2x(Code J)
No load current 5.80/2.90 A
Rated torque 11.3 ft.lb
Locked rotor torque 270 %
Breakdown torque 330 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
