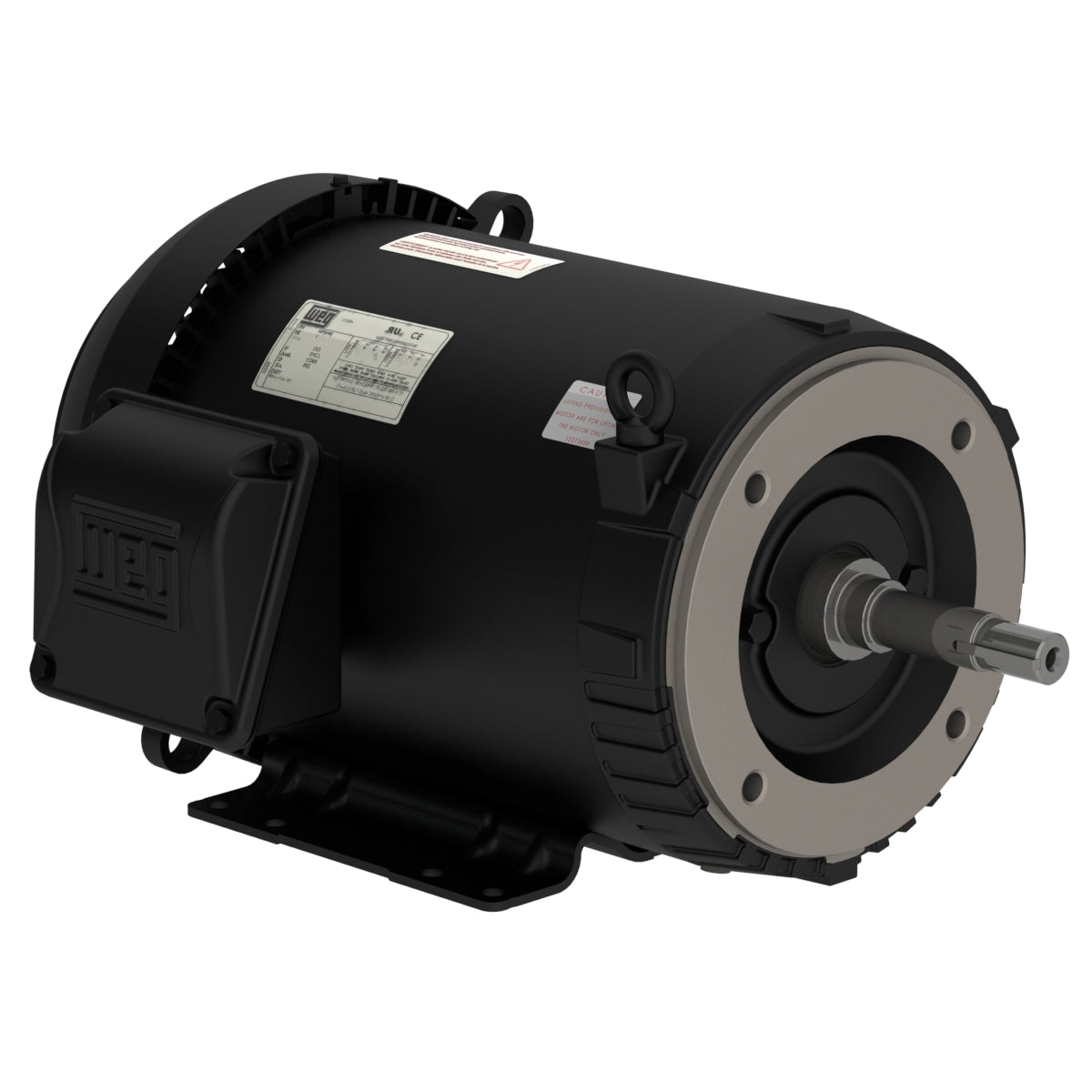

Weg Electric 00736ET3E213JM-SG, 7 1/2 Hp, 3600 Rpm, 213/5JM Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump.

00736ET3E213JM-SG, 7 1/2 Hp, 3600 Rpm, 213/5JM Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 17.3/8.67 A
L. R. Amperes 132/65.9 A
LRC 7.6x(Code H)
No load current 6.63/3.32 A
Rated torque 11.2 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.5496 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
