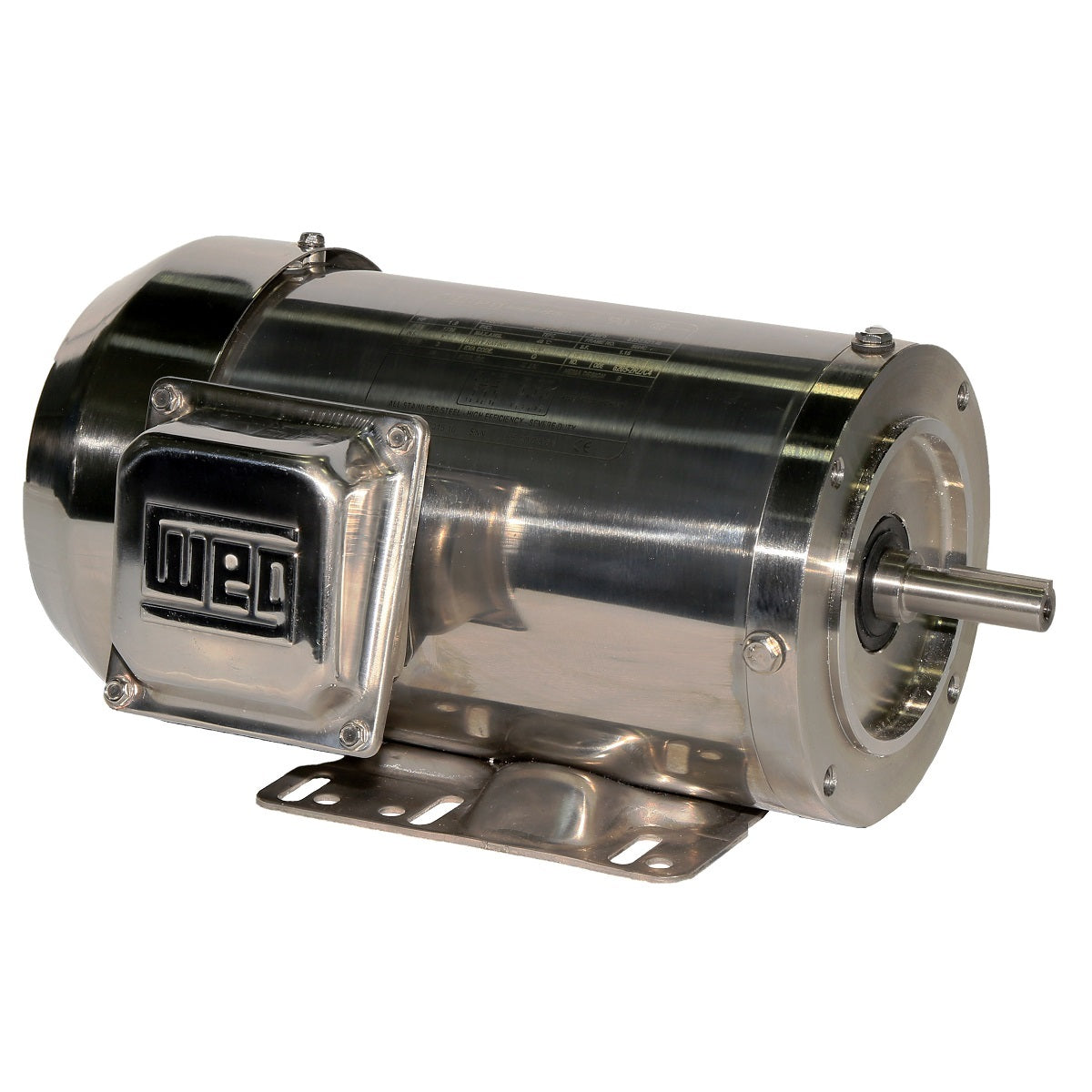

Weg Electric 00736ET3ESS213TC, 7 1/2 Hp, 3600 Rpm, 213TC Frame, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Shark NEMA Premium Efficiency.

00736ET3ESS213TC, 7 1/2 Hp, 3600 Rpm, 213TC Frame, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Shark NEMA Premium Efficiency.

Engineering Data

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product features
Standard NEMA MG-1
Frame 213TC
Frequency 60 Hz
Number of poles 2
Degree of Protection IP56
Synchronous speed 3600 rpm
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Output rating 7.5 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Motor Application Shark
Terminal box¹ Left position
Frame 213TC
Voltage 230/460 V
Synchronous speed 3600 rpm
Number of Poles 02
