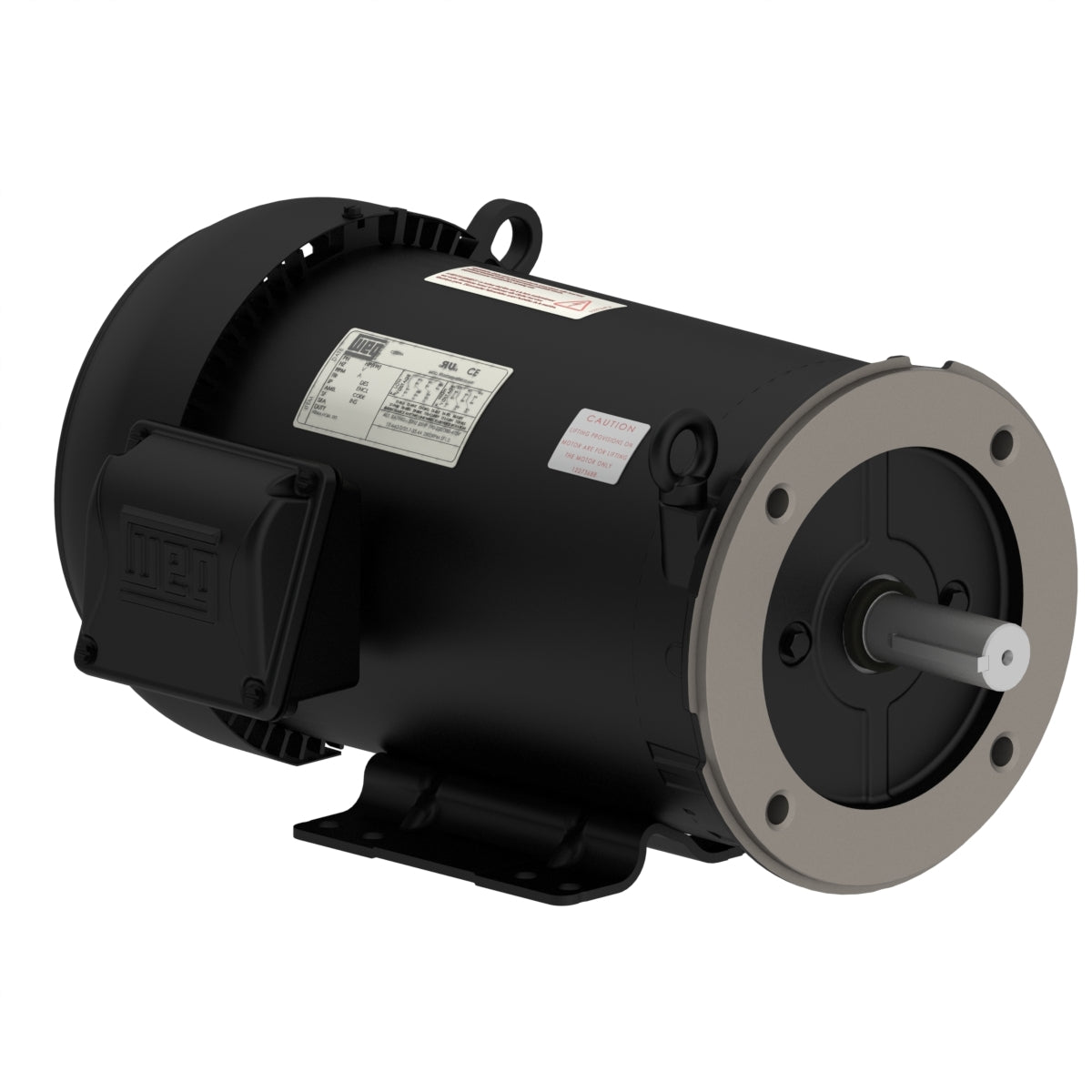

Weg Electric 00736ET3V184TC-S, 7 1/2 Hp, 3600 Rpm, 182/4TC Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

00736ET3V184TC-S, 7 1/2 Hp, 3600 Rpm, 182/4TC Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 200/400 V
Rated current 19.7/9.86 A
L. R. Amperes 152/75.9 A
LRC 7.7x(Code H)
No load current 6.99/3.49 A
Rated torque 1.56 kgfm
Locked rotor torque 270 %
Breakdown torque 360 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.0081 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
