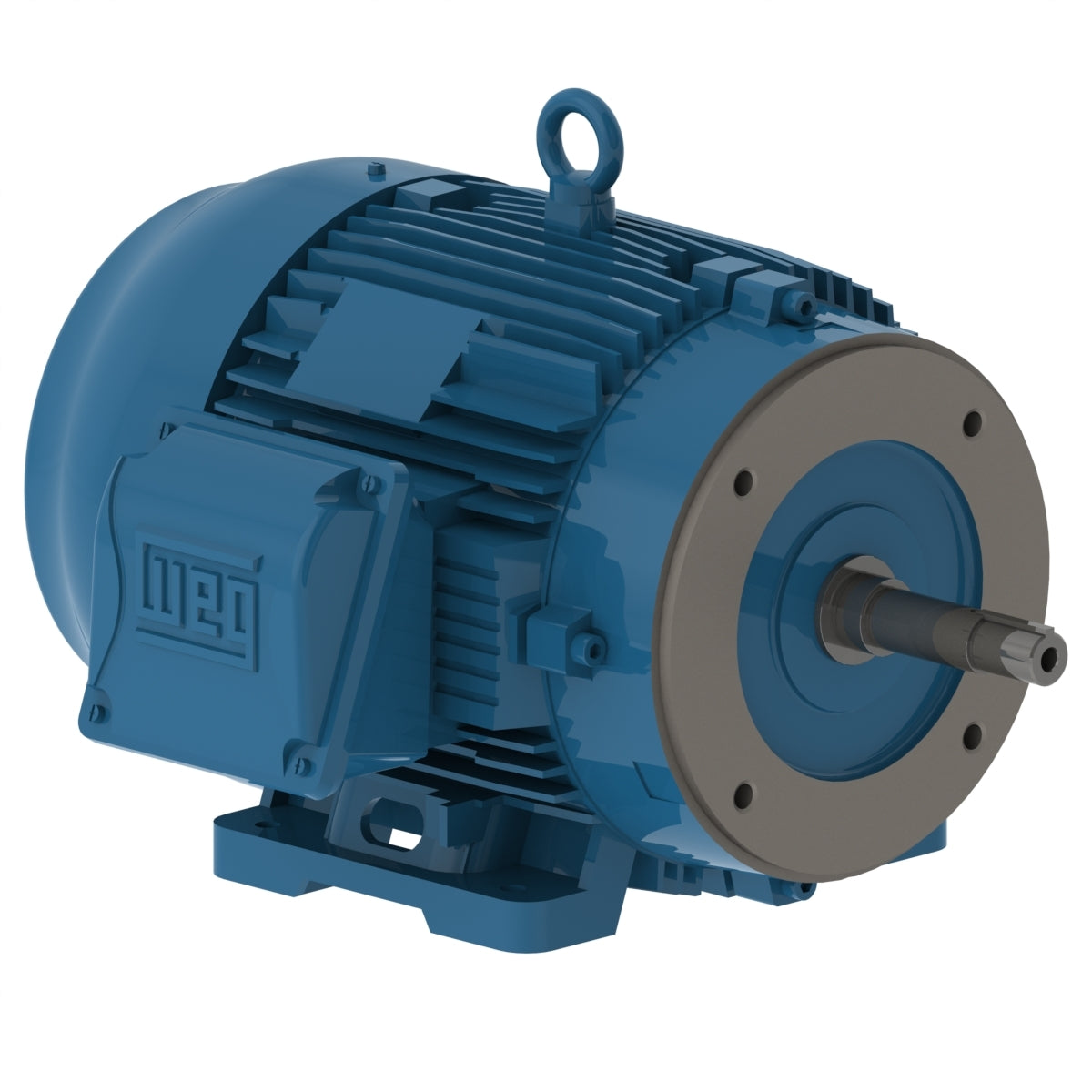

Weg Electric 00736ET3V213JM-W22, 7 1/2 Hp, 3600 Rpm, 213/5JM Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

00736ET3V213JM-W22, 7 1/2 Hp, 3600 Rpm, 213/5JM Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 200/400 V
Rated current 20.1/10.1 A
L. R. Amperes 145/72.5 A
LRC 7.2x(Code H)
No load current 6.21/3.11 A
Rated torque 11.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
