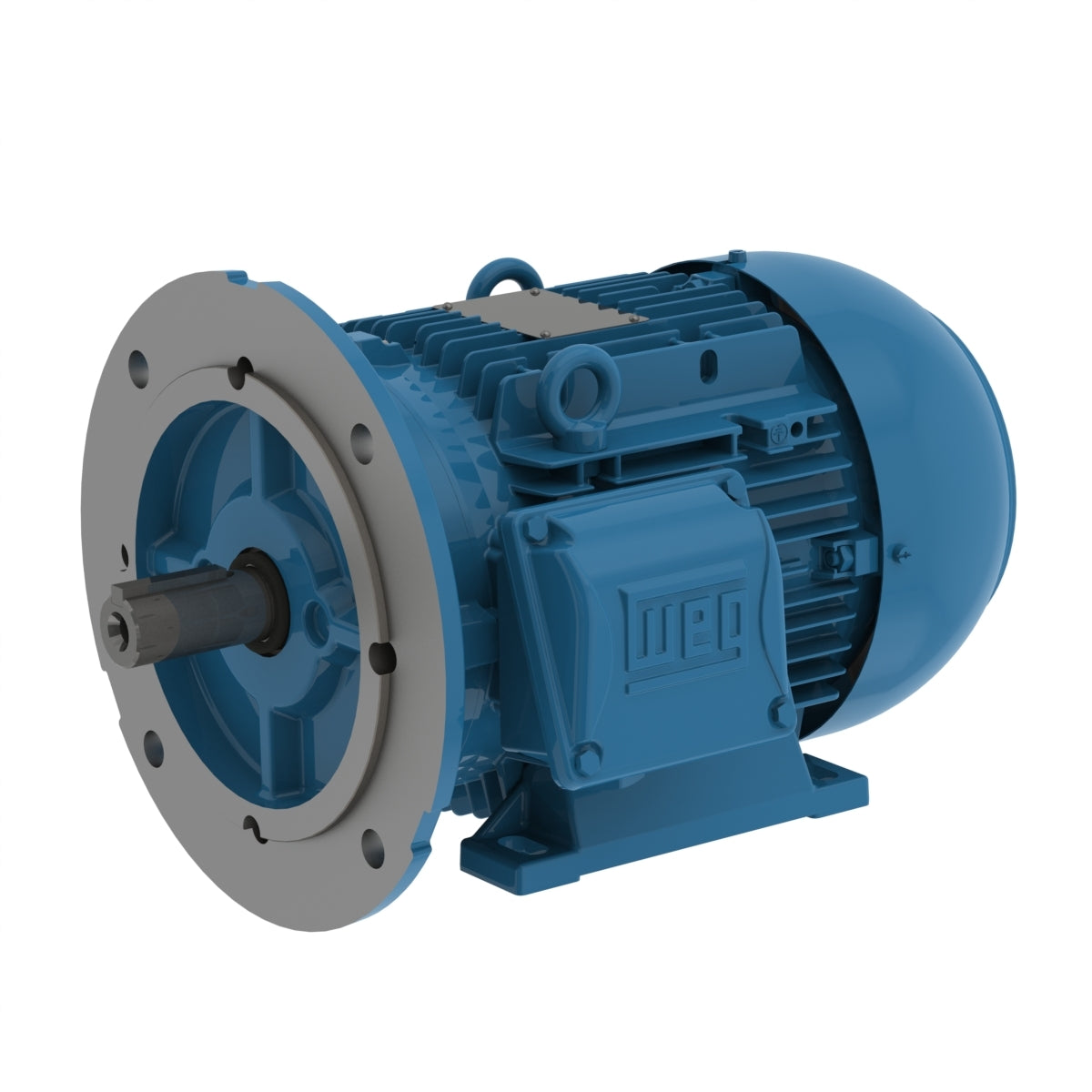

Weg Electric 00736ET3YAL132SFF-W2, 10 Hp, 3600 Rpm, 132S Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, Mounting IE3.

00736ET3YAL132SFF-W2, 10 Hp, 3600 Rpm, 132S Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, Mounting IE3.

Engineering Data

Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange FF
Mounting B35L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 132S
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 12.3 A
L. R. Amperes 119 A
LRC 9.7
No load current 5.20 A
Rated torque 14.8 ft.lb
Locked rotor torque 300 %
Breakdown torque 400 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.5980 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
