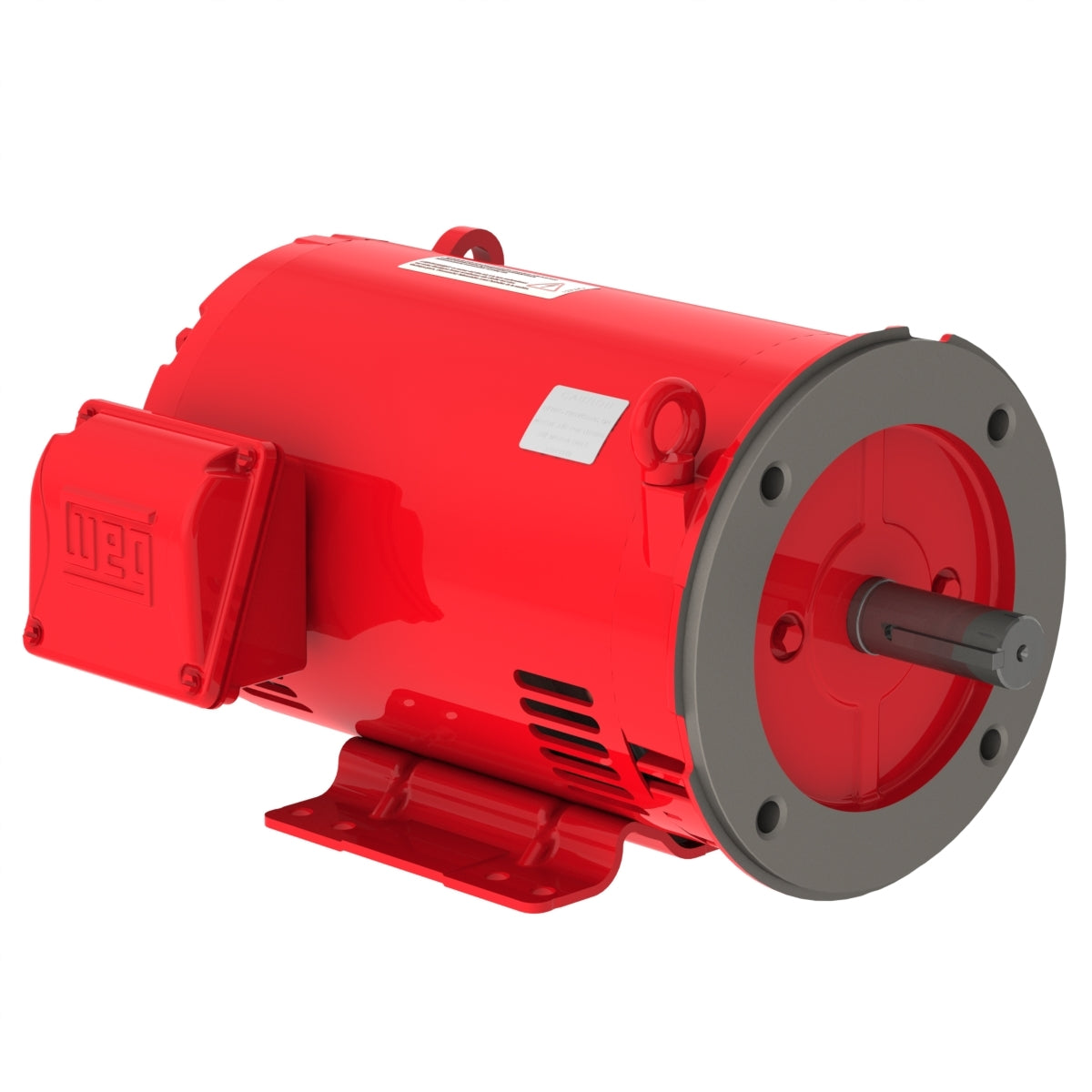

Weg Electric 00736OP3VFP184TC-S, 7 1/2 Hp, 3600 Rpm, 182/4TC Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel High Efficiency.

00736OP3VFP184TC-S, 7 1/2 Hp, 3600 Rpm, 182/4TC Frame, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel High Efficiency.

Engineering Data

The W01 Rolled Steel motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 200/400 V
Rated current 20.4/10.2 A
L. R. Amperes 143/71.3 A
LRC 7.0x(Code H)
No load current 8.04/4.02 A
Rated torque 11.3 ft.lb
Locked rotor torque 180 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.1559 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
