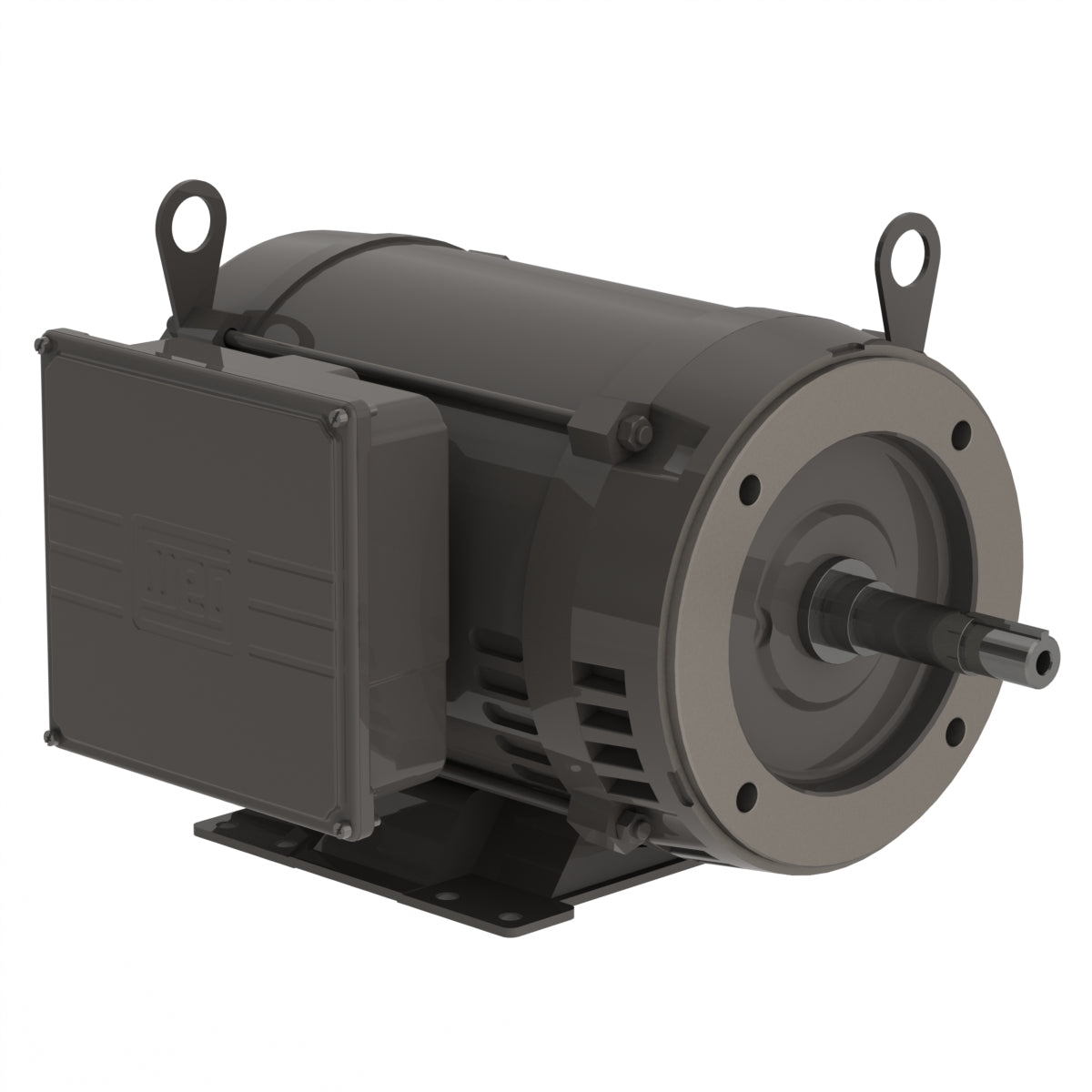

Weg Electric 00736OS1C213JP, 7 1/2 Hp, 3600 Rpm, 213/5JP Frame, 208-230 Vac, TEFC, 3 PH, Foot-mounted, Closed Coupled Pump.

00736OS1C213JP, 7 1/2 Hp, 3600 Rpm, 213/5JP Frame, 208-230 Vac, TEFC, 3 PH, Foot-mounted, Closed Coupled Pump.

Engineering Data

They ensure maximum performance and robustness in a great variety of applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Degree of Protection IP21
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JP
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230 V
Rated current 32.0-30.1 A
L. R. Amperes 256-241 A
LRC 8.0x(Code H)
No load current 0.000-8.00 A
Rated torque 11.2 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.4271 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
