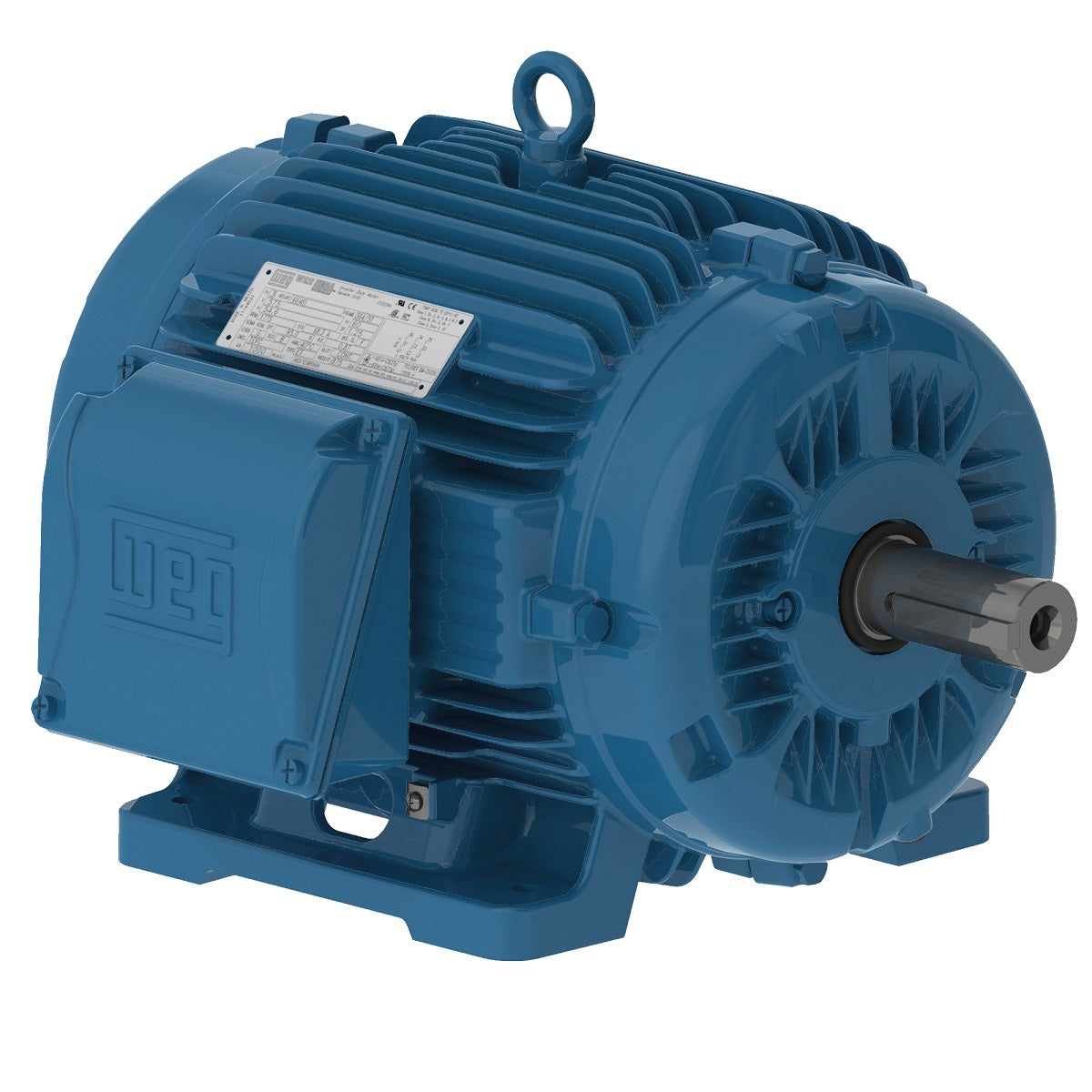

Weg Electric 01009AT3E284T-W22, 10 Hp, 284/6T Frame, 900 RPM, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

01009AT3E284T-W22, 10 Hp, 284/6T Frame, 900 RPM, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 284/6T
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 29.6-26.8/13.4 A
L. R. Amperes 166-150/75.0 A
LRC 5.6x(Code G)
No load current 11.2-13.0/6.50 A
Rated torque 59.7 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 57s (cold) 32s (hot)
Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
