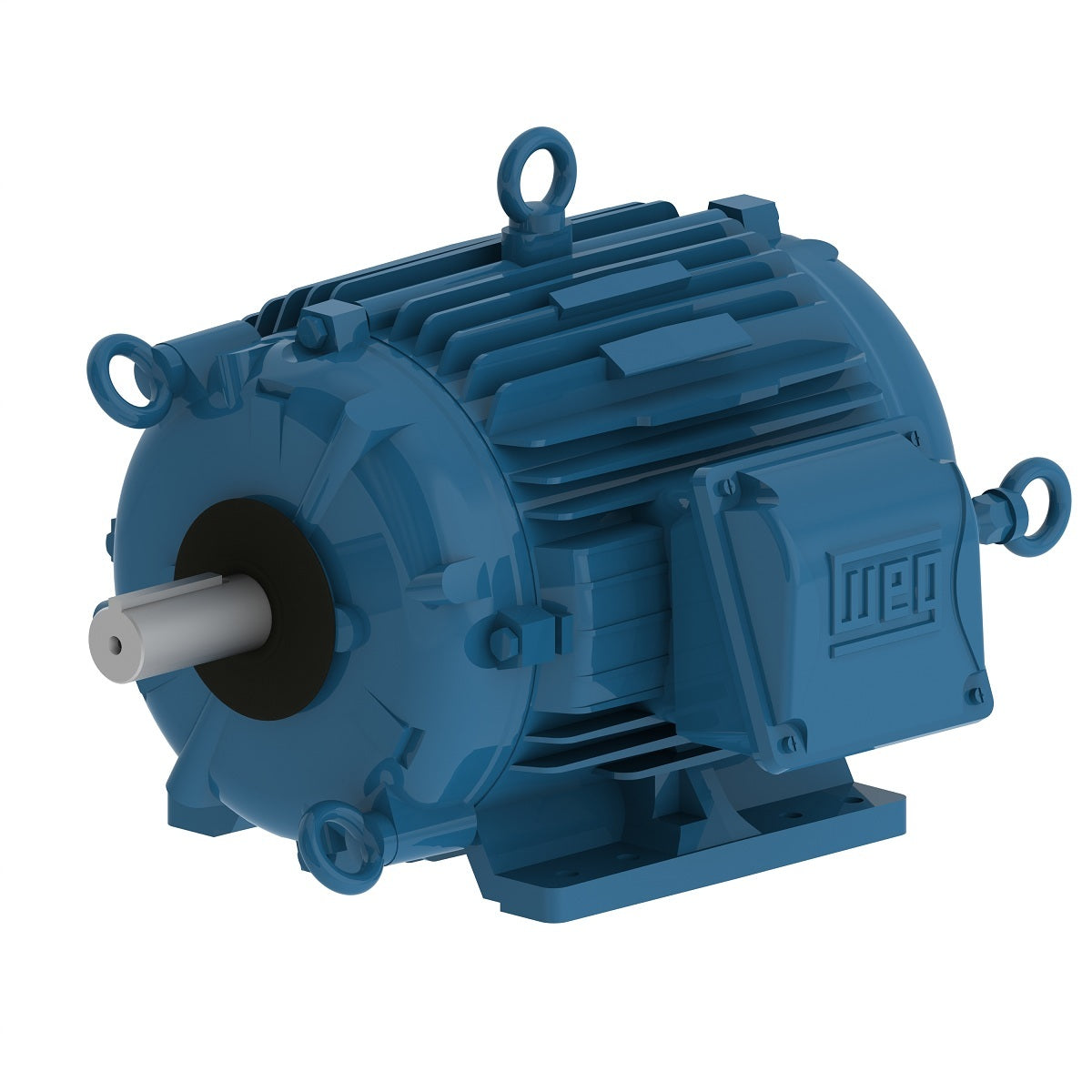

Weg Electric 01012AT3PCT256T-W22, 10 Hp, 254/6T Frame,1200 RPM, 200 Vac, TEAO, 3 PH, Foot-Mounted, W22 Cooling Tower NEMA Premium Efficiency.

01012AT3PCT256T-W22, 10 Hp, 254/6T Frame,1200 RPM, 200 Vac, TEAO, 3 PH, Foot-Mounted, W22 Cooling Tower NEMA Premium Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC410 - TEAO

Frame 254/6T
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 200 V
Rated current 30.6 A
L. R. Amperes 199 A
LRC 6.5x(Code H)
No load current 13.8 A
Rated torque 44.7 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
