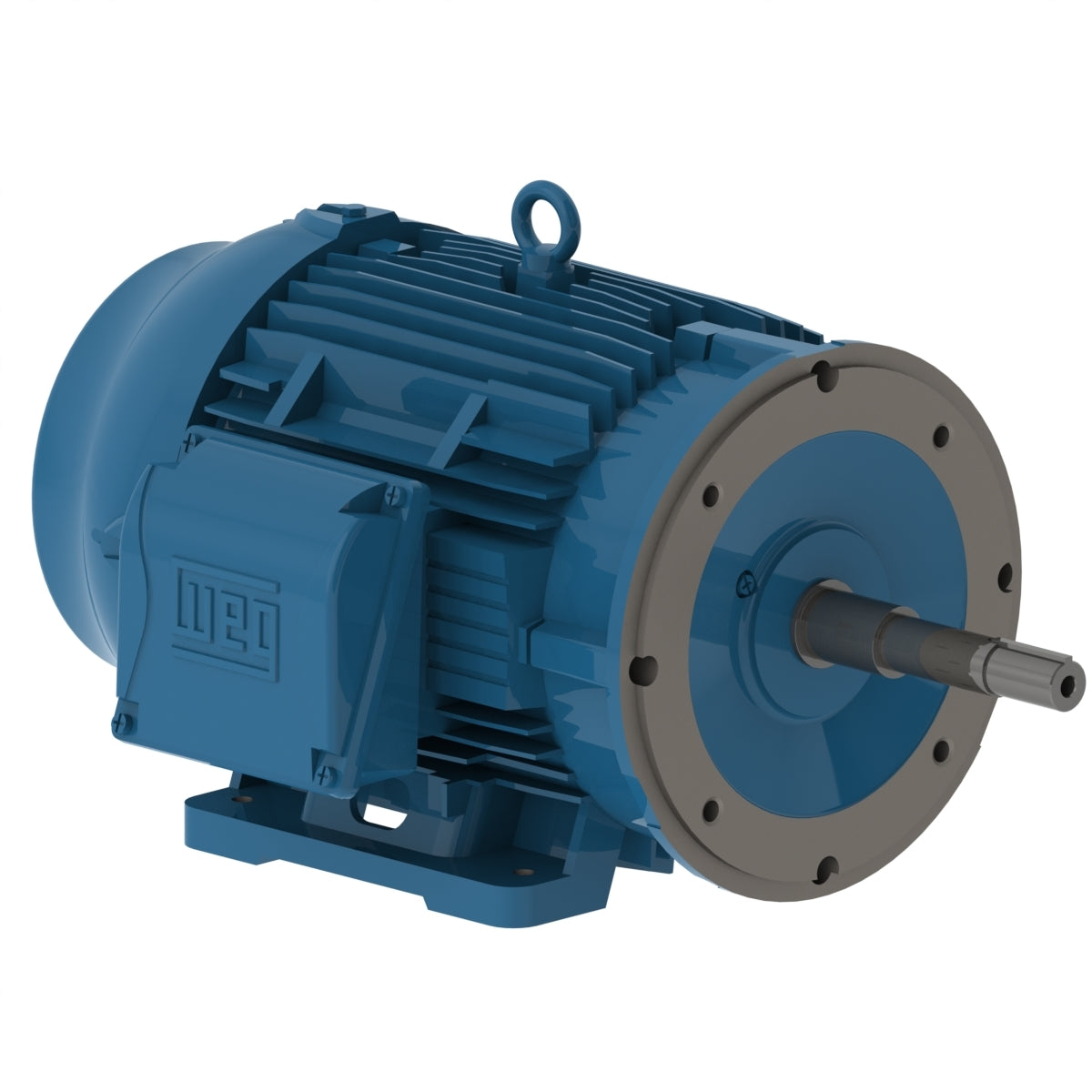

Weg Electric 01012ET3E256JM-W22, 10 Hp, 254/6JM Frame,1200 RPM, 230/460//380 Vac, TEFC, 3 PH, Foot-Mounted, W22 Close Coupled Pump JM.

01012ET3E256JM-W22, 10 Hp, 254/6JM Frame,1200 RPM, 230/460//380 Vac, TEFC, 3 PH, Foot-Mounted, W22 Close Coupled Pump JM.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6JM
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 26.6/13.3 A
L. R. Amperes 173/86.5 A
LRC 6.5x(Code H)
No load current 12.0/6.00 A
Rated torque 44.7 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
