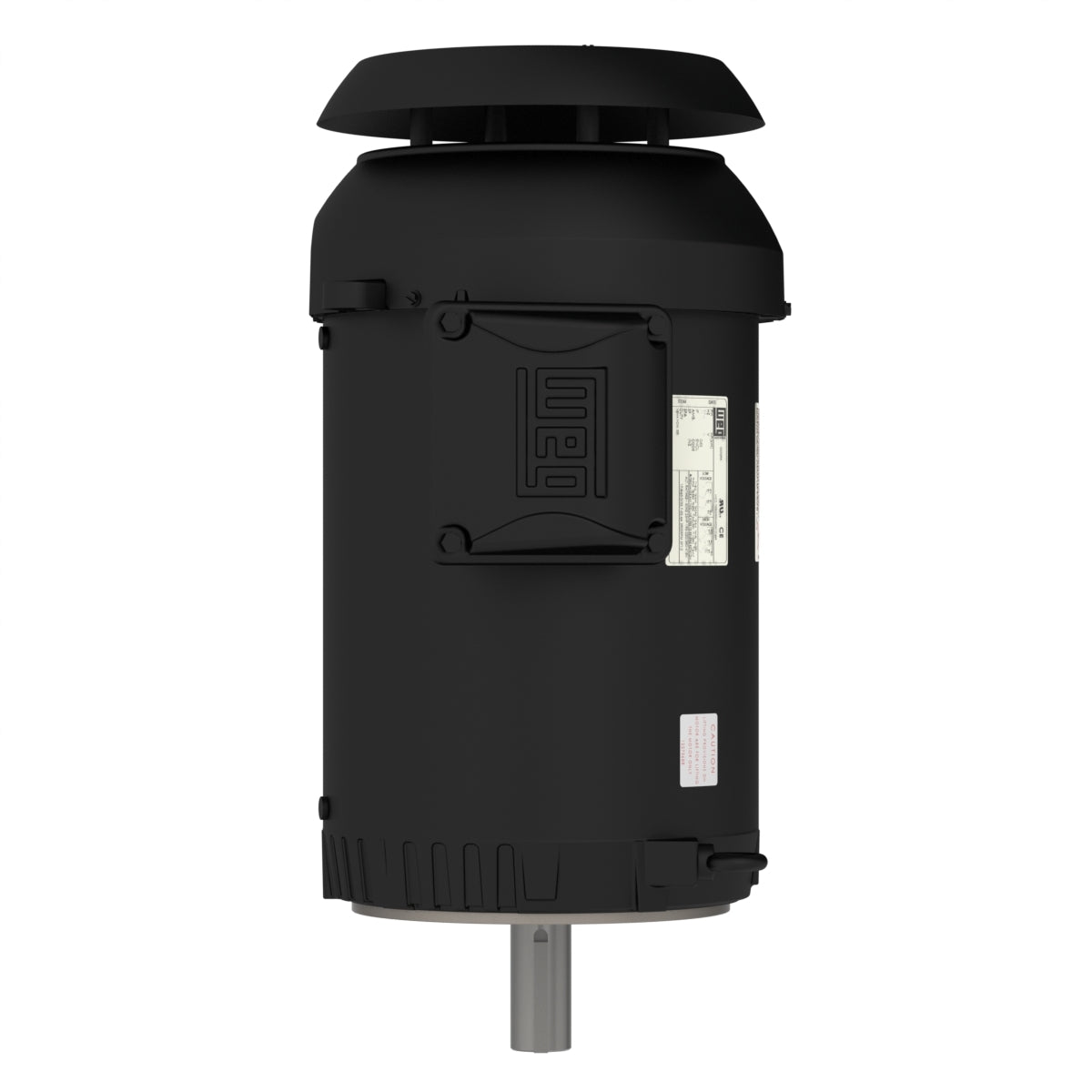

Weg Electric 01012ET3ER256TC-S, 10 Hp, 254/6TC Frame, 1200 RPM, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

01012ET3ER256TC-S, 10 Hp, 254/6TC Frame, 1200 RPM, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.
Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 10 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6TC
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 27.6/13.8 A
L. R. Amperes 149/74.5 A
LRC 5.4x(Code G)
No load current 14.2/7.12 A
Rated torque 44.7 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
