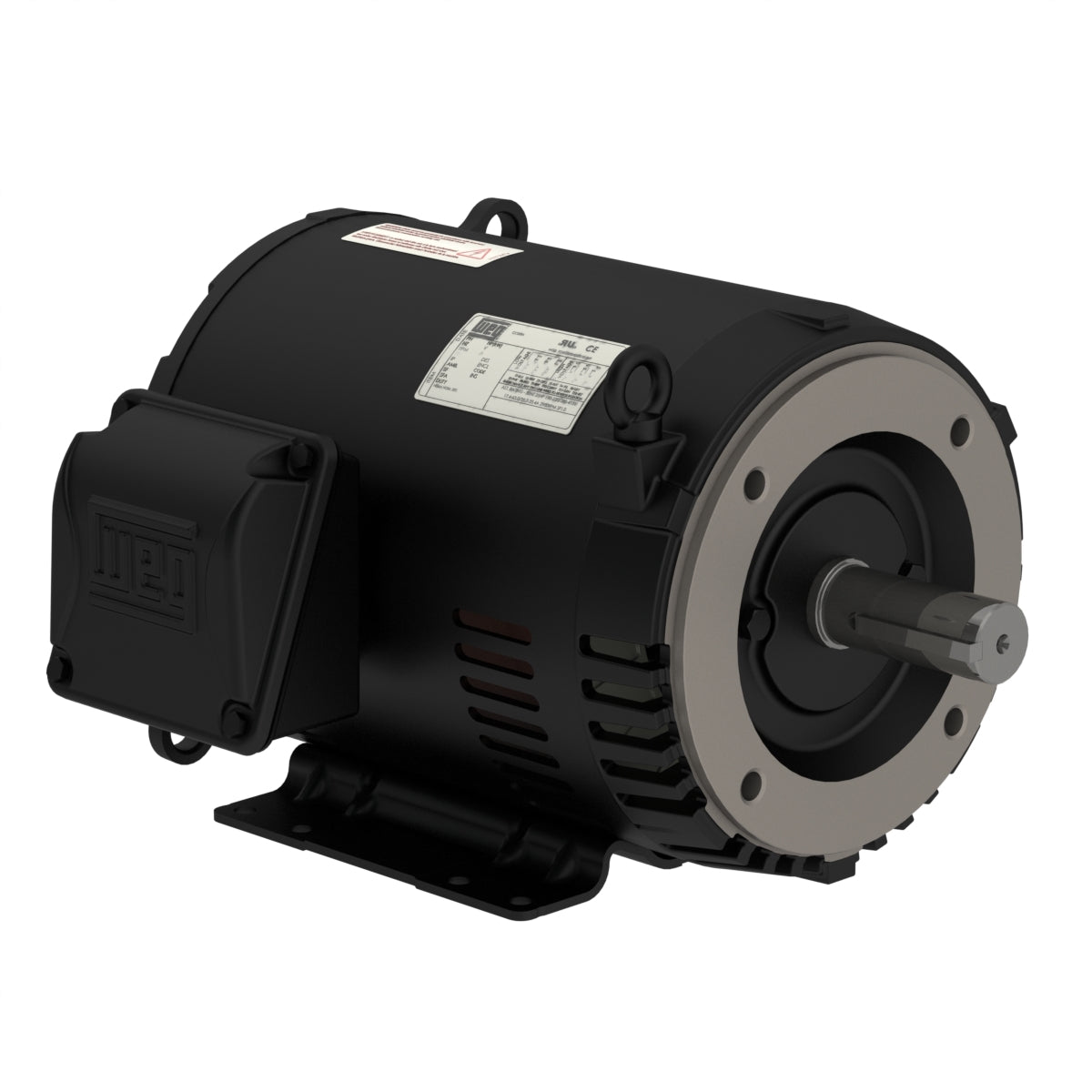

Weg Electric 01012OT3E256JM-S, 10 Hp, 254/JM Frame, 1200 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-Mounted, Rolled Steel JM Pump NEMA.

01012OT3E256JM-S, 10 Hp, 254/JM Frame, 1200 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-Mounted, Rolled Steel JM Pump NEMA.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6JM
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 27.8/13.9 A
L. R. Amperes 147/73.7 A
LRC 5.3x(Code G)
No load current 14.7/7.33 A
Rated torque 44.5 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 2.50 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
